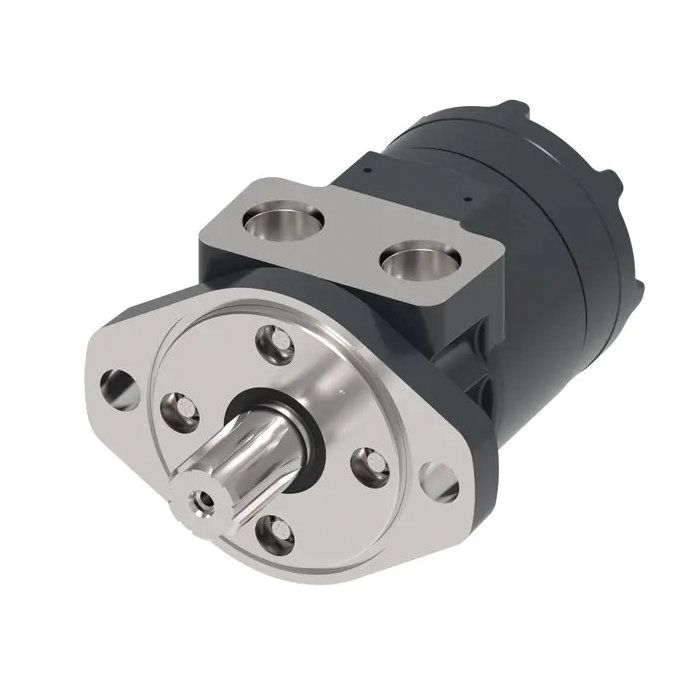

CHAR LYNN MT0036AA39AAD000000000A0A

Description & Features

Designed for efficiency, the Char-Lynn MT0036AA39AAD000000000A0A features a compact yet powerful spool geroler motor that is ideal for diverse agricultural and industrial applications. Its robust construction with cast iron ensures durability and longevity, even in challenging environments. The motor supports a flow rate of up to 57 liters per minute, making it suitable for use in agricultural augers, harvesters, seeders, and railroad maintenance equipment.

This low-speed gerotor/geroler motor boasts extended bearing life and increased shaft seal integrity, offering reliable performance and reducing maintenance needs. With a torque rating of 138 newton meters, it provides consistent power output, fitting seamlessly into demanding tasks. The Char-Lynn brand, known for its quality and innovation, guarantees a product that meets high industry standards.

SKU: 158-3801

Supplier Part Number (MPN): 158-3801-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
With Check Valve Function
Color
Black
Design Code
1
Dimensions
6.42 in L x 3.87 in W x 5.27 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
60
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
25 mm Dia
Shaft Type
Straight Rectangular Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Ronnie T on Nov 28, 2025, 4:35 PM
How well does this handle tough conditions out in the field?
Answer by: Customer Support on Nov 30, 2025, 12:07 PM
Designed with cast iron construction, this Char-Lynn motor is built to withstand challenging environments and provide long-lasting durability.
