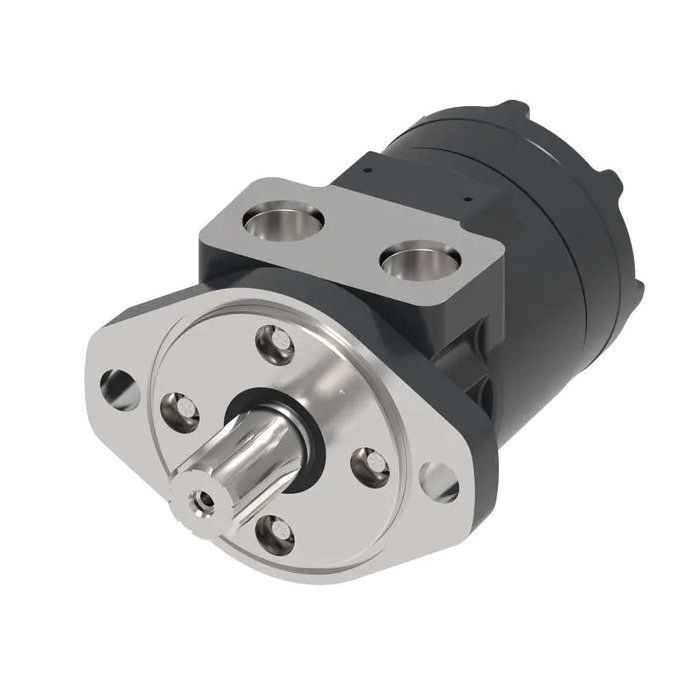

CHAR LYNN MT0226AA18AA0000000000A0A

Ask A Question

Description & Features

Designed for demanding agricultural and rail maintenance applications, the Char-Lynn MT0226AA18AA0000000000A0A is a T Series spool Geroler hydraulic motor from Danfoss/Eaton. Built from cast iron, it delivers a torque output of 430 Nm and supports flow rates up to 57 litres per minute, making it well-suited for high-load, low-speed duty cycles.

This motor is a practical fit for agricultural augers, harvesters, seeders, and railroad maintenance equipment. Its compact form factor is paired with extended bearing life and an increased shaft seal specification, supporting reliable performance in environments where contamination and continuous cycling are common concerns. Classified as a low-speed Gerotor/Geroler unit, it is identified with a product width of 3.87 inches under the Char-Lynn sub-brand.

SKU: 158-3811

Supplier Part Number (MPN): 158-3811-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
8.79 in L x 3.87 in W x 5.27 in H
Frame Size
370
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Tapered Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Rick J on Apr 8, 2025, 8:32 AM
Will this motor fit on my older seeder? I'm not sure what series it is but it's also a Char-Lynn.
Answer by: Customer Support on Apr 9, 2025, 9:32 AM
Use-case-first: For seeders, this Char-Lynn T Series motor should work well as long as the flow rate and torque output match what your equipment requires. You'll want to confirm the mounting pattern and shaft size are compatible too.
