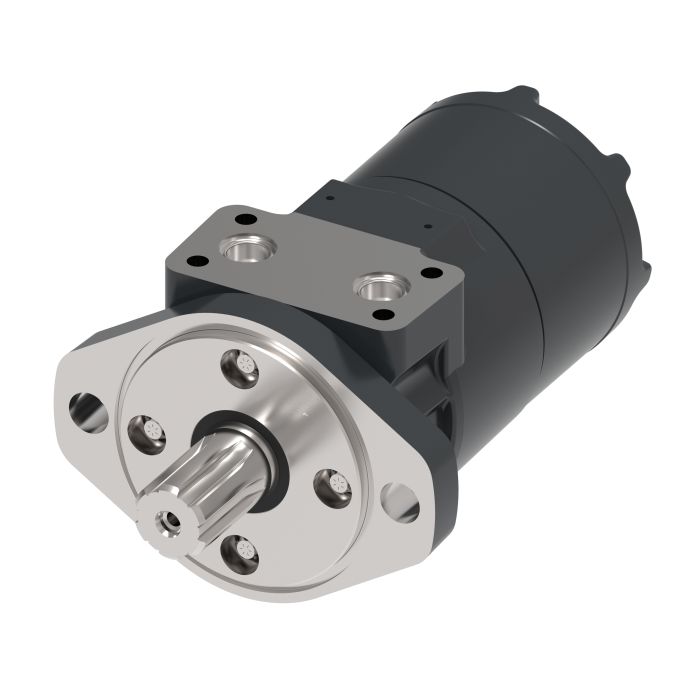

CHAR LYNN MT0049AA02ADE000700000A0A

Ask A Question

Description & Features

The Char-Lynn MT0049AA02ADE000700000A0A geroler motor from Danfoss/Eaton is suitable for agricultural applications such as harvesters and seeders, and is also compatible with railroad maintenance equipment. This hydraulic motor offers a compact yet powerful design and extended bearing life.

The Char-Lynn motor is constructed of ductile iron and features an increased shaft seal. This low-speed gerotor/geroler motor offers a flow rate of 45 liters per minute and a torque rating of 174 newton metres.

SKU: 158-3825

Supplier Part Number (MPN): 158-3825-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
With Check Valve Function
Color
Black
Design Code
1
Dimensions
6.53 in L x 3.87 in W x 5.27 in H
Drain Port Dimension
1/4 in
Frame Size
80
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
Manifold
Seal Material
HNBR
Segment Code
B
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Hank P on Feb 21, 2026, 8:29 PM
What kind of equipment does this motor usually go on? I'm looking at it for a seeder.
Answer by: Customer Support on Feb 22, 2026, 9:23 PM
This Char-Lynn geroler motor is often found on agricultural equipment like harvesters and seeders. It's also used in railroad maintenance equipment.
