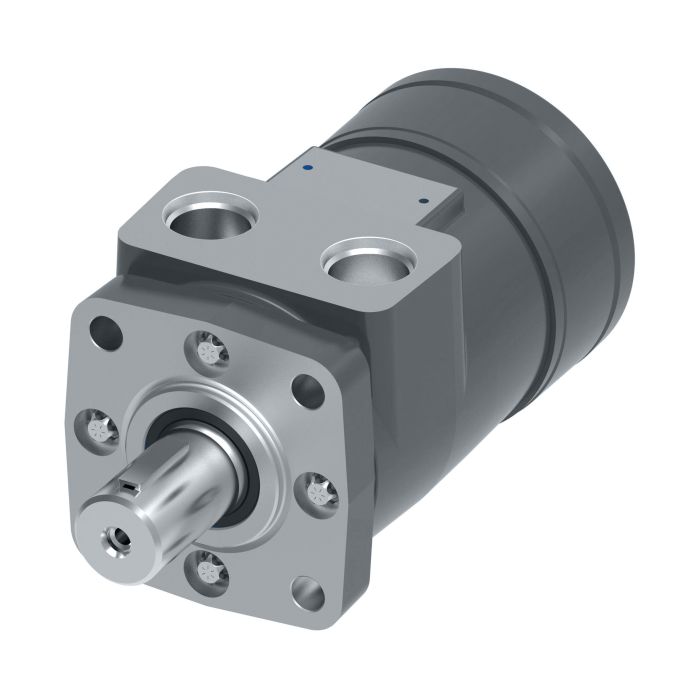

main product photo

CHAR LYNN MT0062BA01AB00N0700000A0A

Ask A Question

Description & Features

Designed for demanding low-speed, high-torque applications, the Char-Lynn MT0062BA01AB00N0700000A0A is a T Series Spool Geroler motor from Danfoss/Eaton, built for reliable performance across a range of agricultural and maintenance equipment. Constructed from ductile iron, it delivers a torque rating of 219 Nm with a maximum flow rate of 57 litres per minute.

This motor is well suited to agricultural augers, harvesters, seeders, and railroad maintenance equipment. Extended bearing life and an increased shaft seal capacity contribute to durability in field conditions, while the compact form factor makes it practical for installations where space is limited.

SKU: 158-3841

Supplier Part Number (MPN): 158-3841-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.68 in L x 3.38 in W x 3.46 in H
Frame Size
100
Housing Material
Iron
Mounting Type
4-Bolt Square Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
NPTF
Seal Material
HNBR
Segment Code
B
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Kent Y on Jan 11, 2026, 6:40 PM
Wondering if this Char-Lynn motor would work okay replacing the one on my old seed drill?
Answer by: Customer Support on Jan 13, 2026, 12:54 PM
Use-case-first. This motor is well-suited to agricultural seeders, along with augers, harvesters, and railroad maintenance equipment.
