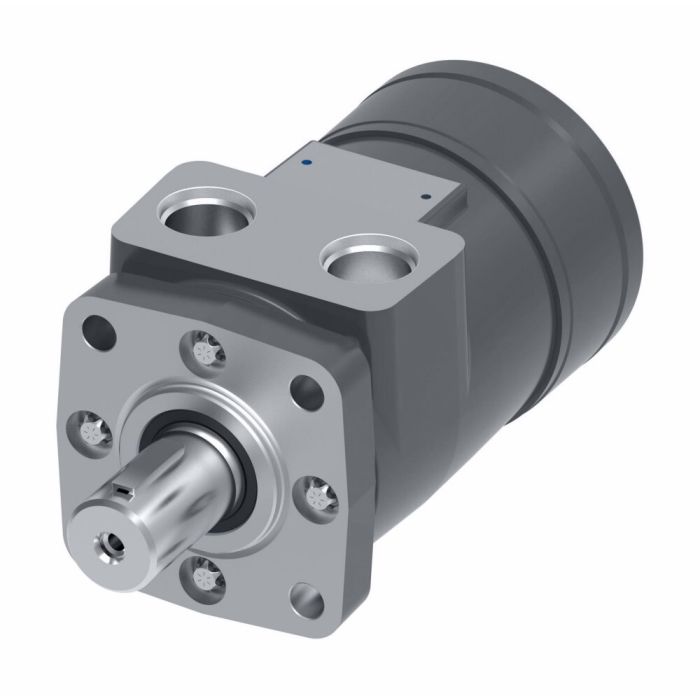

main product photo

CHAR LYNN MT0226AA01AA0000700000A0A

Ask A Question

Description & Features

Designed for demanding agricultural and railway maintenance applications, the Char-Lynn MT0226AA01AA0000700000A0A is a T Series Spool Geroler hydraulic motor built for low-speed, high-torque service. Constructed from ductile iron, it delivers a torque rating of 430 Nm with a flow rate capacity of 57 litres per minute, making it well suited for use in agricultural augers, harvesters, seeders, and railroad maintenance equipment.

The motor features an extended bearing life design alongside an increased shaft seal capacity, supporting reliable performance under sustained load conditions. Its compact form factor allows for flexible installation in space-constrained machinery without sacrificing output. The male output configuration and Geroler displacement mechanism are consistent with Char-Lynn's T Series platform, which is recognized for durability in mobile and agricultural hydraulic circuits.

SKU: 158-3872

Supplier Part Number (MPN): 158-3872-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
8.79 in L x 3.87 in W x 5.27 in H
Frame Size
370
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
UNF-2B, SAE O-ring
Seal Material
HNBR
Series
T Series
Shaft Size
1 in Dia
Shaft Type
Straight Woodruff Keyed
Valve Type
Spool

Product Questions & Answers (1)

Question by: Sheila H on Apr 16, 2025, 7:32 PM
Would this motor be a suitable replacement for my harvester, provided the specs match up?
Answer by: Customer Support on Apr 18, 2025, 6:12 AM
This Char-Lynn T Series motor is often used in agricultural harvesters, among other equipment, so it should work well as a replacement if it matches your existing motor's specifications.
