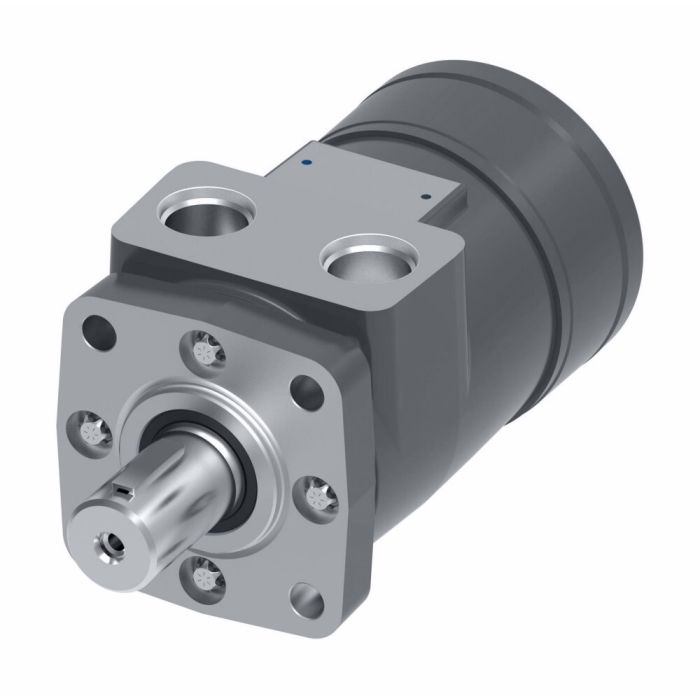

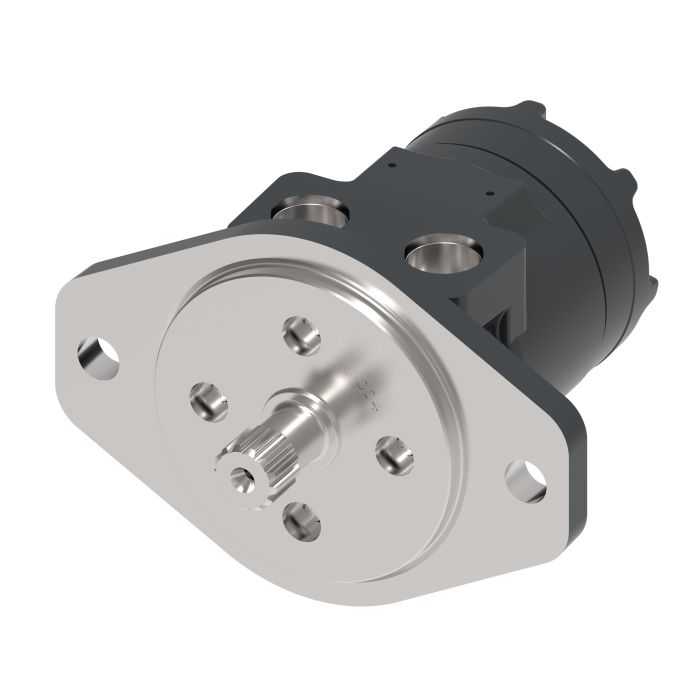

main product photo

CHAR LYNN MT0022DD16AF2000000000A0A

Ask A Question

Description & Features

Designed for demanding agricultural and rail maintenance applications, the Char-Lynn MT0022DD16AF2000000000A0A is a T Series Spool Geroler motor from Danfoss/Eaton Char-Lynn, built to deliver reliable low-speed, high-torque performance. Constructed from ductile iron, it offers a torque rating of 76 Nm and supports a flow rate of 38 litres per minute, making it well-suited for use in harvesters, seeders, agricultural augers, and railroad maintenance equipment.

The motor features a compact form factor without sacrificing output capacity, and is engineered for extended bearing life alongside an increased shaft seal for improved durability in field conditions. With a product width of 3.87 inches and a male port configuration, it integrates readily into standard hydraulic drive circuits where space and reliability are both priorities.

SKU: 158-3927

Supplier Part Number (MPN): 158-3927-001

Specifications

Brand
Danfoss
Bearing Type
Hydrodynamic Journal
Check Valve Function
Without Check Valve Function
Color
Black
Design Code
1
Dimensions
6.085 in L x 3.87 in W x 5.27 in H
Drain Port Dimension
1/4 in
Frame Size
35
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Paint Information
Low Gloss Black Primer
Painted
With Painted
Port Location
Side, Aligned
Port Type
BSP
Seal Material
NBR
Segment Code
B
Series
T Series
Shaft Size
7/8 in Dia
Shaft Type
Splined
Valve Type
Spool

Product Questions & Answers (1)

Question by: Scott Y on Sep 6, 2025, 11:40 AM
What kind of hydraulic fluid should I be running in this thing?
Answer by: Customer Support on Sep 8, 2025, 6:32 AM
This motor is designed to work with standard hydraulic fluids, but it's always a good idea to check the specs of your specific system to make sure everything's compatible for optimal performance.
