Male Jic X Fem. Bspp Fixed

Ask A Question

Description & Features

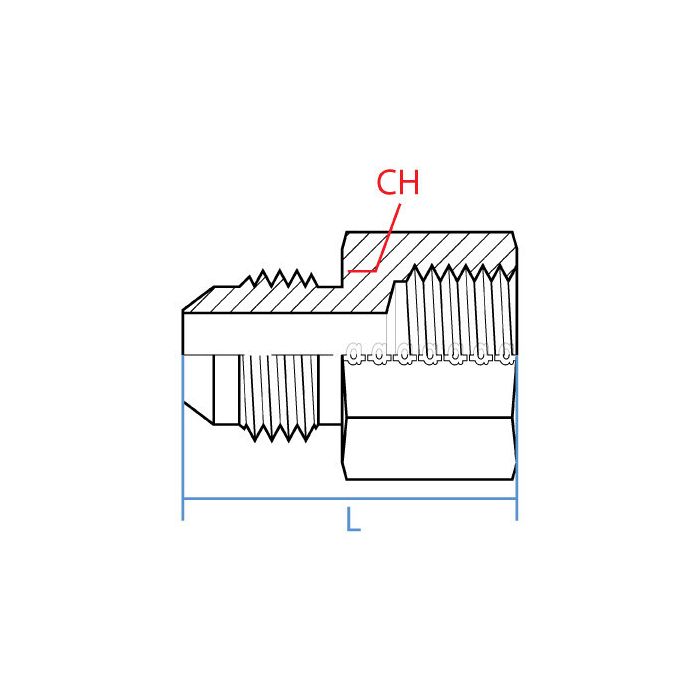

Constructed from steel in a straight configuration, this adapter provides a reliable transition between a 1/2" Male JIC connection (3/4-16 UNF thread) and a 3/8" Female BSPP fixed port (G 3/8-19 thread). The fixed female BSPP end maintains a stationary seal, making it well suited for installations where rotational movement at the port connection is not required.

The Male JIC X Fem. BSPP Fixed adapter is an Adaptall product, measuring 39.7mm in length with a 24mm wrench width. Its straight geometry keeps routing simple in tight hydraulic assemblies where a direct inline connection between JIC and BSPP threaded components is needed.

SKU: 9009-08-06

Supplier Part Number (MPN): 9009-08-06

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female BSP, Male JIC
Connection Type 1
Male JIC
Connection Type 2
Female BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-2, ISO 8434-6, SAE J514
Dimensions
36 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
22 mm
Material
Steel
Material Construction
Carbon Steel
Series
9009 Series
Thread Size
3/4-16, 3/8-19

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Rick J on Sep 24, 2025, 7:01 AM
Will this fitting work to connect a 1/2" JIC to a 3/8" BSPP port? Just want to make sure before I order.
Answer by: Customer Support on Sep 25, 2025, 3:50 PM
That's precisely what it's designed for, providing a reliable transition between those two sizes and thread types. The 1/2" JIC side has a 3/4-16 UNF thread, and the 3/8" BSPP side has a G 3/8-19 thread.
Question by: Billy R on Sep 10, 2025, 1:38 PM
adapter's only 39.7mm long, will that be enough clearance to get a wrench on it proper when its installed in a tight spot?
Answer by: Customer Support on Sep 12, 2025, 6:39 AM
At 24mm wrench width, you can get a standard wrench on it without much trouble. The 39.7mm length keeps the overall footprint small, which actually helps in cramped assemblies rather than hurting. As long as you've got enough room to seat the JIC side into your fitting and thread the BSPP port end in, the compact size works in your favor. Tight installs are really where a straight inline adapter like this earns its keep.
Question by: Cindy P on Jan 21, 2026, 7:56 AM
got a hose end that’s 1/2 JIC male, will this adapter screw right onto it and give me a 3/8 BSPP female port?
Answer by: Customer Support on Jan 23, 2026, 6:12 AM
With a 3/4-16 UNF male JIC on one side and a G 3/8-19 female BSPP fixed port on the other, it’s meant to transition from a 1/2 inch JIC connection to a 3/8 inch BSPP port in a straight, inline setup.
