Male Jic X Fem. Bspp Fixed

Description & Features

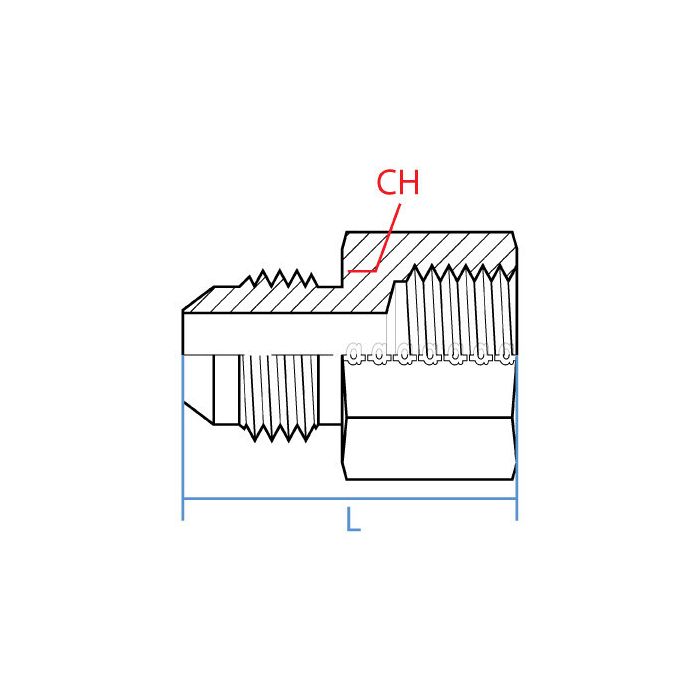

This straight steel adapter features a male 7/8 - 14 UNF JIC side with a 5/8" size, and a female G 1/2 - 14 BSPP side with a 1/2" size. This Male JIC X Fem. BSPP Fixed is part of Adaptall's line of hydraulic adapters.

SKU: 9009-10-08

Supplier Part Number (MPN): 9009-10-08

Specifications

Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Female BSP, Male JIC	Connection Type 1 Male JIC	Connection Type 2 Female BSPP	Dimension Standards BS 5200, SAE J514	Dimensions 45 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 9009 Series	Thread Size 1/2-14 x 7/8-14

Product Questions & Answers (2)

Question by: Shane J on May 3, 2025, 2:08 PM

trying to swap over from JIC to BSPP on a straight run. what are the exact thread callouts on each end of this adapter?

Answer by: Customer Support on May 5, 2025, 10:40 AM

On the male side you get a 7/8 - 14 UNF JIC connection listed as 5/8 inch size. The female side is G 1/2 - 14 BSPP listed as 1/2 inch size, and the fitting is a straight steel adapter.

Question by: Dwayne H on Oct 8, 2025, 6:54 AM

Will this fitting work to connect a JIC male end to a BSPP female end?

Answer by: Customer Support on Oct 9, 2025, 11:38 AM

Exactly right, this adapter features a male JIC on one side and a female BSPP on the other, making it ideal for that type of connection.
