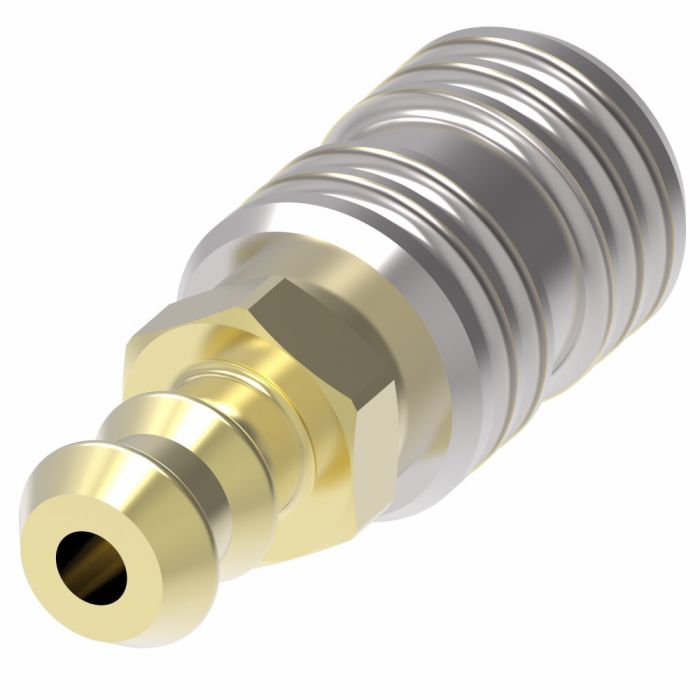

This DANFOSS / EATON/HANSEN CPLNG female half features a ball lock internal connection and a sleeve lock safety mechanism for quick connect and disconnect functionality. No special tools are required for use.
Constructed from brass with Buna-N seals, it is suitable for general pneumatics, construction, industrial plants, and fluid transfer applications. This coupling complies with US Industrial Interchange and A-A-59439 standards and is certified to ISO 6150 Series B and A-A-59439. It offers a flow rate of 179 gallons per minute and is designed for a minimum working temperature of -40 degrees. The end types are push to connect and line/hose/tube.
SKU: 1600P
Supplier Part Number (MPN): 1600P
|
Alternate Part Numbers
MINO-00015X03360
|
Application
General Pneumatics, Construction, Industrial Plants, Fluid transfer
|
Certifications
ISO 6150 Series B|A-A-59439
|
Compliances
US Industrial Interchange, A-A-59439
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Type 1
Push to Connect
|
End Type 2
Line/Hose/Tube
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
179 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Ball Lock
|
Item Type
Female Half
|
Language
English
|
Minimum Working Temperature
-40
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Brass
|
Product Width
1
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
Buna-N
|
Sub Brand
Hansen
|
Supplier Part Number
1600P
|
Valve Type
1 way
|
Product Weight
0.20 lbs
|
