06MP-06FPS-06FPS TEE

Ask A Question

Description & Features

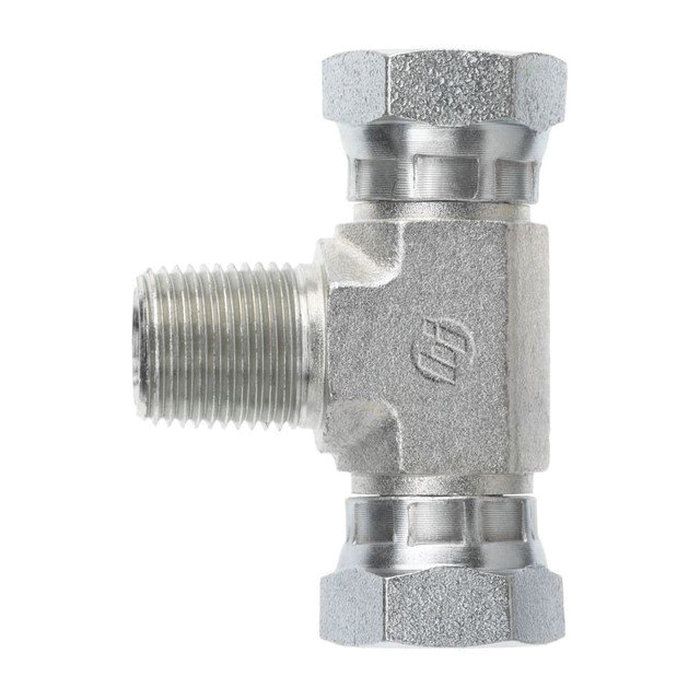

This forged steel Tee, part number 06MP-06FPS-06FPS TEE, features a male NPTF thread and two female NPSM swivel threads. The male NPTF thread (B1) conforms to SAE J476 specifications, while the two female NPSM swivel threads (3 and B2) conform to SAE J514.

With a centerline length of 1.200 inches (L) and 0.990 inches (L2), this fitting is suitable for various hydraulic applications. The fitting is part of the 1601-FG series.

SKU: 1601-06-06-06-FG

Supplier Part Number (MPN): 1601-06-06-06-FG

Alternate Part Numbers: 1601-06-06-06, A2254-6-6S, BR-1601-06-06-06

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Connection Type 3
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
2.19 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
7/8 in
l2 Dimensions
1.22 in
l Dimensions
2.4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1601-FG Series
Thread 2 Drill Dimensions
0.34 in
Thread 3 Drill Dimensions
0.34 in
Thread B1 Drill Dimensions
0.406 in
Thread Size
3/8-18

Product Questions & Answers (1)

Question by: Dwight C on Jun 30, 2025, 7:54 AM
What size are those threads on this Tee fitting? I wanna make sure it'll match up.
Answer by: Customer Support on Jul 1, 2025, 8:27 PM
The male NPTF thread and the two female NPSM swivel threads are all 3/8-18.
