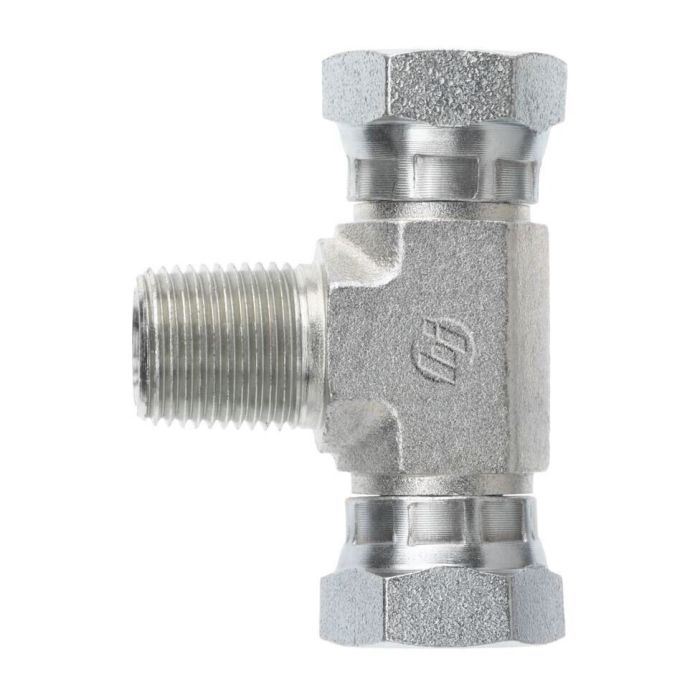

main product photo

12MP-08FPS-08FPS TEE

Ask A Question

Description & Features

This forged steel tee fitting, part number 12MP-08FPS-08FPS TEE, is part of the Brennan Industries 1601-FG series. It features a 3/4-14 Male NPTF thread conforming to SAE J476 standards.

The tee also includes two 1/2-14 Female NPSM Swivel threads adhering to SAE J514 specifications. Centerline lengths measure 1.610 mm and 1.330 mm, with an overall length of 3.220 mm.

SKU: 1601-12-08-08-FG

Supplier Part Number (MPN): 1601-12-08-08-FG

Alternate Part Numbers: 1601-12-08-08, A2254-8-12S

Specifications

Brand
BRENNAN
Connection Size 1
3/4 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
FNPSM Swivel, MNPT
Connection Type 1
Male SAE 30 deg NPTF
Connection Type 2
SAE FNPSM Swivel
Connection Type 3
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Dimensions
2.94 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-1/4
l2 Dimensions
1.59 in
l Dimensions
3.22 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1601-FG Series
Thread 2 Drill Dimensions
0.46 in
Thread 3 Drill Dimensions
0.46 in
Thread B1 Drill Dimensions
0.719 in
Thread Size
3/4-14 x 1/2-14

Product Questions & Answers (2)

Question by: Rick H on Jan 6, 2026, 9:33 PM
So this tee fitting has three different threads, right? Just want to make sure I'm seeing that correctly.
Answer by: Customer Support on Jan 8, 2026, 6:07 AM
Yes, that's right. This tee features one 3/4-14 Male NPTF thread and two 1/2-14 Female NPSM Swivel threads.
Question by: Wes P on Sep 9, 2025, 3:37 PM
Got a 3/4 male NPTF port on a manifold block and need to split the line out to two 1/2 inch hose ends, this tee gonna work for that kind of setup?
Answer by: Customer Support on Sep 11, 2025, 6:47 AM
Yeah, that's pretty much what this fitting is built for. The run port is 3/4-14 Male NPTF, so it threads straight into a female NPTF port on your manifold. The two branch ports are both 1/2-14 Female NPSM Swivel, which mate up with male NPSM hose end fittings. The swivel feature on both branch ports lets you rotate each hose into position after the tee is seated, which saves a lot of grief during final assembly when clearance is tight.
