06FP-06FPS-06FPS TEE

Description & Features

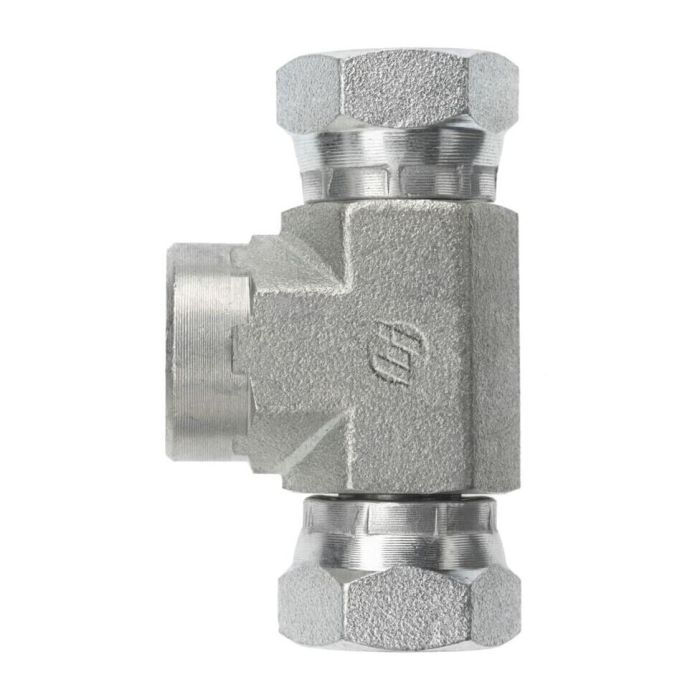

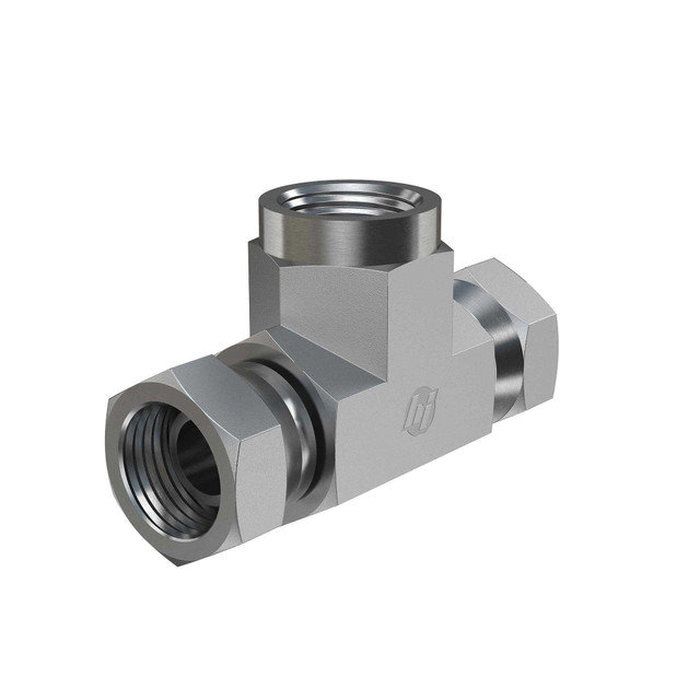

Forged from steel, the 06FP-06FPS-06FPS Tee is a 3/8-18 tee fitting designed for hydraulic line branching in industrial fluid systems. All three ports are sized at 3/8-18, with the branch port configured as a Female Nptf thread to SAE J476, and both run ports as Female Npsm Swivel threads to SAE J514. The combination of a fixed Nptf port and two swivel Npsm ports gives this fitting flexibility in routing and assembly, reducing the need for additional adapters at the connection point.

Forged steel construction provides the structural integrity expected in hydraulic service. Hex dimensions of 0.875 in. across both wrenching flats allow standard tooling for installation. The fitting carries a Prop 65 warning for California residents and is part of Brennan's 1602-Fg series.

SKU: 1602-06-06-06-FG

Supplier Part Number (MPN): 1602-06-06-06-FG

Alternate Part Numbers: 1602-06-06-06, A2253-6-6S, BR-1602-06-06-06

Specifications

Supplier Part Number 1602-06-06-06-FG	Product Weight 0.00 lbs

Product Questions & Answers (1)

Question by: Dale B on Jun 14, 2025, 12:19 PM

Will this tee work with standard hydraulic fittings?

Answer by: Customer Support on Jun 16, 2025, 6:27 AM

This tee features a combination of port types to provide connection flexibility. It has one 3/8-18 female NPTF port (to SAE J476) and two 3/8-18 female NPSM swivel ports (to SAE J514).
