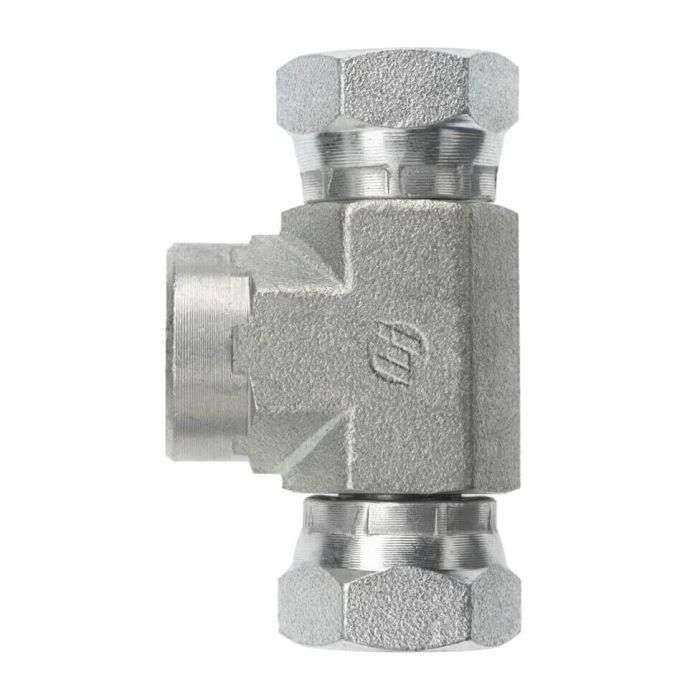

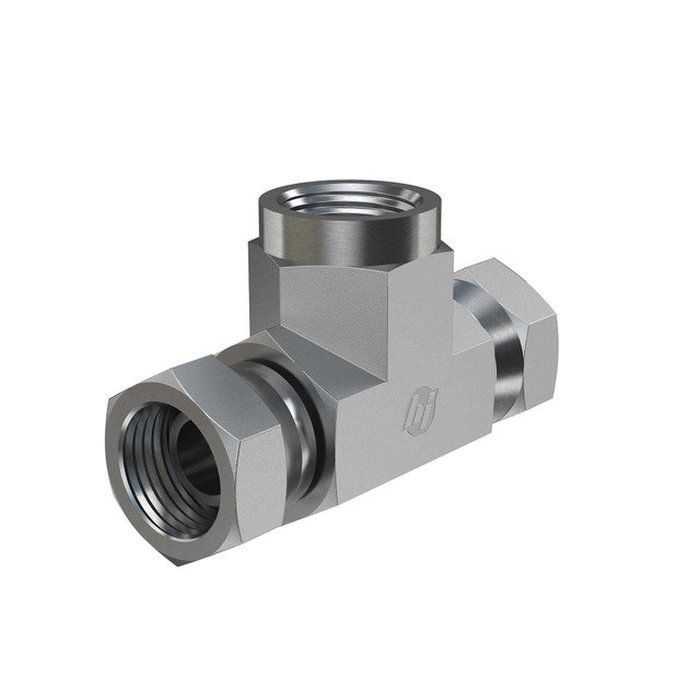

main product photo

08FP-06FPS-06FPS TEE

Ask A Question

Description & Features

Crafted from durable forged steel, this tee fitting is designed for robust performance in industrial hydraulic systems. The 08FP-06FPS-06FPS TEE features a combination of Female NPTF and Female NPSM Swivel threads, offering versatility in various configurations. It boasts a 1/2-14 Female NPTF thread according to SAE J476 standards, and two 3/8-18 Female NPSM Swivel threads in line with SAE J514 specifications, ensuring compatibility with a wide range of connectors and hoses.

With precision dimensions, including an overall length of 2.340 mm and a centerline length of 1.170 mm, this tee fitting ensures reliable connections and optimal flow. The consistent hex size of 1.062 mm on both ends facilitates easy installation and maintenance. Suitable for complex hydraulic systems, this tee fitting is an essential component for efficient fluid control in demanding environments.

SKU: 1602-08-06-06-FG

Supplier Part Number (MPN): 1602-08-06-06-FG

Alternate Part Numbers: 1602-08-06-06, A2253-6-8S

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
FNPSM Swivel, FNPT
Connection Type 1
Female SAE NPTF
Connection Type 2
SAE FNPSM Swivel
Connection Type 3
SAE FNPSM Swivel
Dimension Standards
SAE J476, SAE J514
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1 x 1 in
l2 Dimensions
1.23 in
l Dimensions
2.34 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1602-FG Series
Thread 2 Drill Dimensions
0.34 in
Thread 3 Drill Dimensions
0.34 in
Thread B1 Drill Dimensions
0.531 in
Thread Size
1/2-14 x 3/8-18

Product Questions & Answers (1)

Question by: Terry C on Jun 30, 2025, 9:23 AM
Just want to make sure this will fit my setup. It takes a 1/2" NPT fitting, and two 3/8" NPSM swivel fittings. Is that right?
Answer by: Customer Support on Jul 2, 2025, 6:30 AM
That's correct. This tee has one 1/2-14 Female NPTF port and two 3/8-18 Female NPSM Swivel ports.
