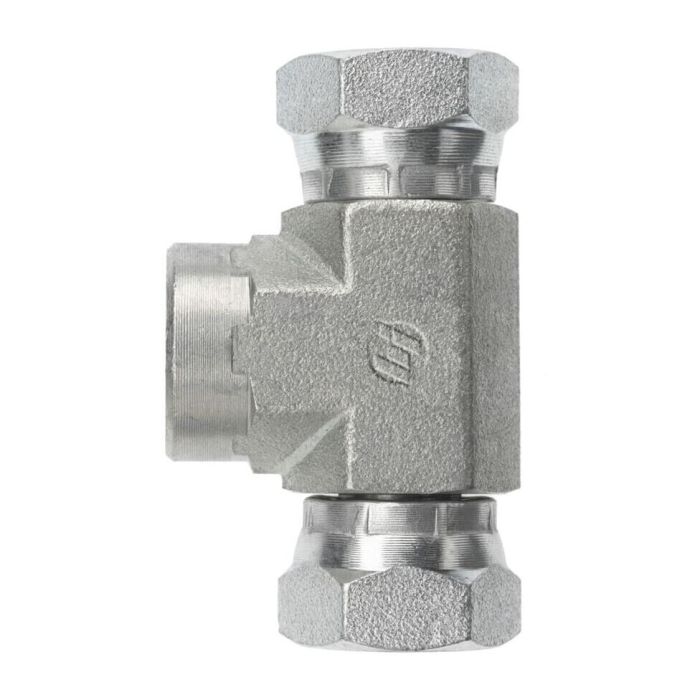

20FP-20FPS-20FPS TEE

Description & Features

Forged from steel and built to Brennan Industries' Series 1602-Fg standards, this tee fitting provides a three-port junction with a combination of thread types suited to demanding hydraulic line connections. The run ports (B1 and B2) and branch port are all sized at 1 1/4-11 1/2, with the run inlet (B1) configured as a Female Nptf thread per SAE J476, and both the run outlet (B2) and branch port configured as Female Npsm Swivel threads per SAE J514.

The 20Fp-20Fps-20Fps Tee has an overall length of 4.500 in. and a secondary overall length of 1.700 in., with hex flats measuring 1.875 in. across both wrench points. Forged steel construction provides the structural integrity expected in hydraulic system assemblies where joint reliability is critical. The swivel thread configuration on two of the three ports allows for rotational positioning during installation, reducing the need for alignment adjustments in tight routing situations.

SKU: 1602-20-20-20-FG

Supplier Part Number (MPN): 1602-20-20-20-FG

Alternate Part Numbers: 1602-20-20-20, A2253-20-20S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1602-20-20-20-FG	Product Weight 2.29 lbs

Product Questions & Answers (1)

Question by: Wayne M on Mar 26, 2026, 6:17 PM

Just want to be sure, this tee fitting will work with standard NPT fittings, right?

Answer by: Customer Support on Mar 27, 2026, 7:00 PM

It uses a female NPTF thread on the B1 port, so that should be compatible with standard NPT fittings. Just make sure to pay attention to the different thread types on the other ports.
