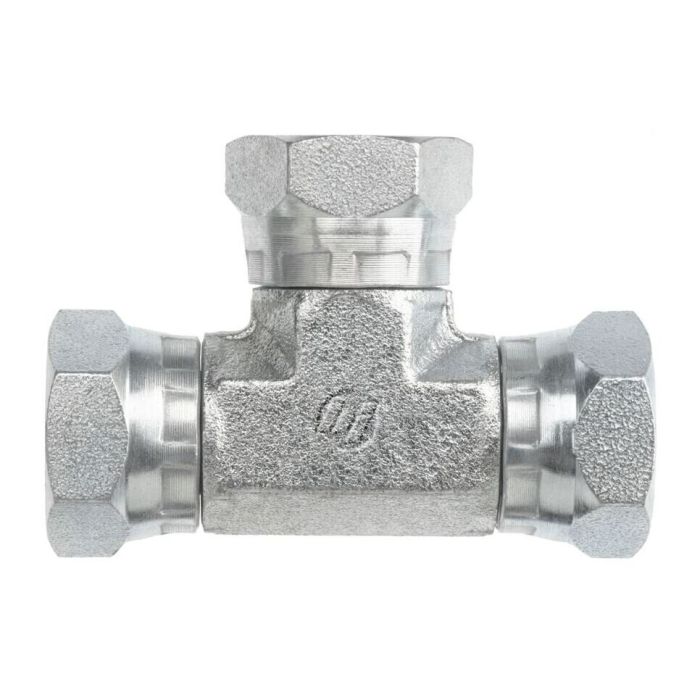

04FPS-04FPS-04FPS TEE

Description & Features

Constructed from robust forged steel, the 04FPS-04FPS-04FPS TEE is a reliable choice for industrial hydraulic systems requiring precision and durability. Designed with three female NPSM swivel connections, each threaded to a 1/4-18 SAE J514 specification, this tee ensures secure and efficient fluid transfer. The consistent dimensions, with an overall length of 2.140 mm and centerline lengths of 1.070 mm and 0.880 mm, provide stability and balance in complex assemblies.

This tee is part of the Brennan Series 1603-FG, known for its high-quality standards and compatibility in demanding environments. Each hex size measures 0.688 mm, facilitating easy installation and maintenance. The product is marked with a PROP-65 WARNING for California residents, ensuring compliance with safety regulations.

SKU: 1603-04-04-04-FG

Supplier Part Number (MPN): 1603-04-04-04-FG

Alternate Part Numbers: 1603-04-04-04, A2255-4-4S, BR-1603-040404FG, FMC103-2055

Specifications

Brand BRENNAN	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type FNPSM Swivel	Connection Type 1 SAE FNPSM Swivel	Connection Type 2 SAE FNPSM Swivel	Connection Type 3 SAE FNPSM Swivel	Dimension Standards SAE J514	Dimensions 1.95 in L	Finish Trivalent Zinc-Plated	Fitting Type Tee	Hex Size 11/16 in	l2 Dimensions 1.07 in	l Dimensions 2.14 in	Material Steel	Material Construction AISI C1045 Steel	Maximum Operating Pressure 6000 psi	Series 1603-FG Series	Thread 2 Drill Dimensions 0.22 in	Thread 3 Drill Dimensions 0.22 in	Thread B1 Drill Dimensions 0.22 in	Thread Size 1/4-18

Similar Products

Model Number	Connection Size 1	Connection Size 2	Connection Size 3	Thread Size	Hex Size
1603-02-02-02-FG	1/8 in	1/8 in		1/8-27	0.563 in
1603-06-06-06-FG	3/8 in	3/8 in	3/8 in	3/8-18	7/8 in
1603-08-08-08-FG	1/2 in	1/2 in	1/2 in	1/2-14	1 x 1 in
1603-12-12-12-FG	3/4 in	3/4 in	3/4 in	3/4-14	1-1/4
1603-16-16-16-FG	1 in	1 in		1-11-1/2	1-1/2 in

Product Questions & Answers (2)

Question by: Lance W on Sep 16, 2025, 9:30 AM

Is this tee made out of steel?

Answer by: Customer Support on Sep 17, 2025, 2:06 PM

Yes, it's constructed from forged steel.

Question by: Larry W on May 12, 2025, 3:58 PM

All three ports on this thing are the same size and thread type, right? Just want to make sure before I go trying to fit it into a line that's already running 1/4-inch connections.

Answer by: Customer Support on May 14, 2025, 3:41 PM

All three ports are identical. Each one is a 1/4-18 female NPSM swivel, built to SAE J514 spec, with a drill size of 0.220 mm across the board. So if your existing lines are already running 1/4-18 male fittings, all three connections on this tee will match up the same way.
