06FPS-06FPS-06FPS TEE

Description & Features

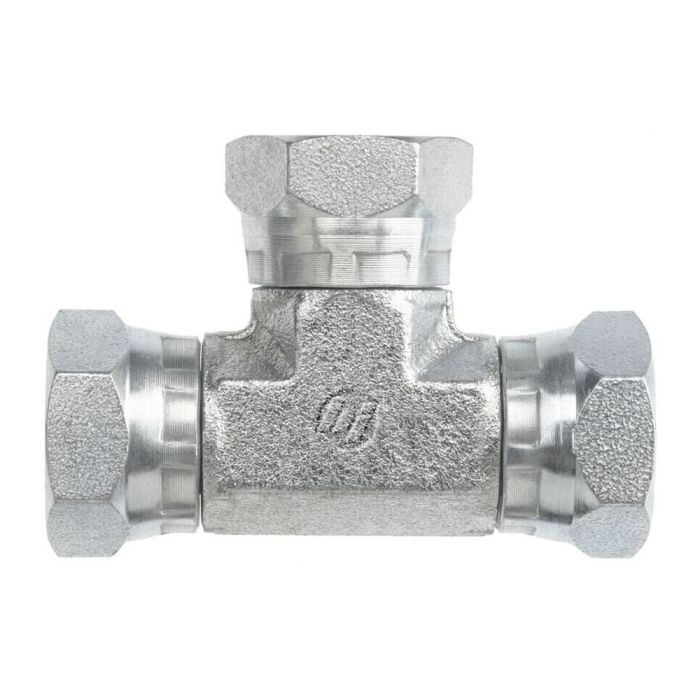

This forged steel tee features three 3/8-18 female NPSM swivel ports conforming to SAE J514 specifications. With a raw material type of forged steel, the 06FPS-06FPS-06FPS TEE is part of the Brennan 1603-FG series.

The fitting has a centerline length of 1.200 mm for one port and 0.990 mm for the other two, with an overall length of 2.400 mm. Each hex measures 0.875 mm.

SKU: 1603-06-06-06-FG

Supplier Part Number (MPN): 1603-06-06-06-FG

Alternate Part Numbers: 1603-06-06-06, A2255-6-6S, BR-1603-060606FG

Specifications

Brand
BRENNAN
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
FNPSM Swivel
Connection Type 1
SAE FNPSM Swivel
Connection Type 2
SAE FNPSM Swivel
Connection Type 3
SAE FNPSM Swivel
Dimension Standards
SAE J514
Dimensions
2.19 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
7/8 in
l2 Dimensions
1.2 in
l Dimensions
2.4 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
6000 psi
Series
1603-FG Series
Thread 2 Drill Dimensions
0.34 in
Thread 3 Drill Dimensions
0.34 in
Thread B1 Drill Dimensions
0.34 in
Thread Size
3/8-18

Similar Products

Model Number Connection Size 1 Connection Size 2 Connection Size 3 Thread Size Hex Size Price Action
02FPS-02FPS-02FPS TEE

1603-02-02-02-FG

1/8 in

1/8 in

1/8-27

0.563 in

04FPS-04FPS-04FPS TEE

1603-04-04-04-FG

1/4 in

1/4 in

1/4-18

11/16 in

08FPS-08FPS-08FPS TEE

1603-08-08-08-FG

1/2 in

1/2 in

1/2 in

1/2-14

1 x 1 in

12FPS-12FPS-12FPS TEE

1603-12-12-12-FG

3/4 in

3/4 in

3/4 in

3/4-14

1-1/4

16FPS-16FPS-16FPS TEE

1603-16-16-16-FG

1 in

1 in

1-11-1/2

1-1/2 in

Product Questions & Answers (1)

Question by: Dwight C on Mar 15, 2026, 5:04 PM
So, is this forged steel tee pretty tough then?
Answer by: Customer Support on Mar 16, 2026, 7:17 PM
the 06FPS-06FPS-06FPS TEE is made from forged steel, so it's built to handle some pressure.
