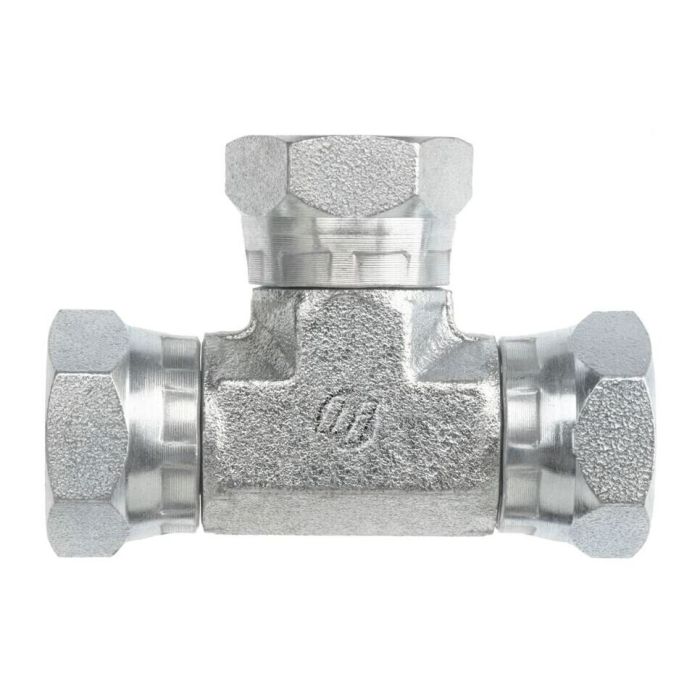

08FPS-08FPS-08FPS Tee Stnls

Ask A Question

Description & Features

Forged from stainless steel, the 08FPS-08FPS-08FPS Tee Stnls is a equal tee fitting designed for hydraulic line connections requiring corrosion-resistant construction. All three ports feature 1/2-14 Female NPSM Swivel threads conforming to SAE J514, making this fitting suitable for use with standard JIC-style hydraulic assemblies across all three connection points.

From the Brennan Industries 1603-FG series, this tee measures 2.780 inches in overall length, with a centerline length of 1.390 inches on the run and 1.110 inches on the branch. The uniform hex size across all ports simplifies installation with standard tooling. California residents should note this product carries a Prop 65 warning.

SKU: 1603-08-08-08-SS

Supplier Part Number (MPN): 1603-08-08-08-SS

Specifications

Brand
BRENNAN
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
FNPSM Swivel
Connection Type 1
SAE FNPSM Swivel
Connection Type 2
SAE FNPSM Swivel
Connection Type 3
SAE FNPSM Swivel
Dimension Standards
SAE J514
Dimensions
2-1/2 in L
Fitting Type
Tee
Hex Size
1 x 1 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
1603-FG Series
Thread 3 Drill Dimensions
0.44/0.46 in
Thread B1 Drill Dimensions
0.44/0.46 in
Thread B2 Drill Dimensions
0.44/0.46 in
Thread Drill 2 Dimensions
0.44/0.46 in
Thread Drill 3 Dimensions
0.44/0.46 in
Thread Size
1/2-14

Product Questions & Answers (1)

Question by: Pete F on Feb 19, 2026, 7:56 AM
Will this tee work with standard JIC hydraulic fittings?
Answer by: Customer Support on Feb 20, 2026, 10:47 AM
all three ports are made with 1/2-14 Female NPSM Swivel threads that meet SAE J514 specs. So it should play nice with your standard JIC stuff.
