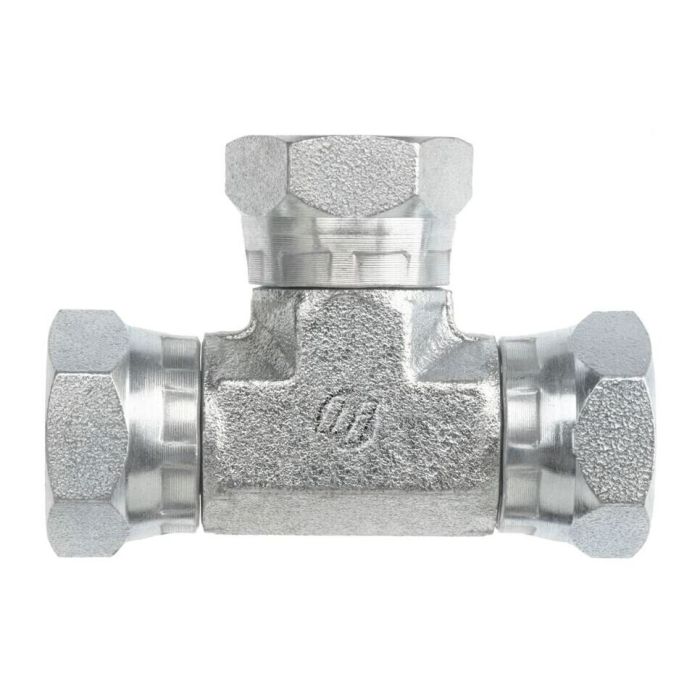

12FPS-12FPS-12FPS TEE

Description & Features

Constructed from forged steel, the 12FPS-12FPS-12FPS Tee is a three-port swivel fitting designed for hydraulic lines requiring a tee connection with uniform 3/4-14 Female NPSM swivel threads at all three ports. All threads conform to SAE J514, making this fitting compatible with standard 37° flare JIC connections used across mobile and industrial hydraulic systems.

All three ports share identical thread sizing and specification, simplifying installation in symmetrical flow-splitting or combining configurations. The forged steel construction provides the structural integrity expected in demanding hydraulic environments. Hex dimensions measure 1.250 across all three flats, and overall length runs 3.300 inches, with centerline dimensions of 1.650 and 1.300 inches on the respective legs. This fitting is manufactured by Brennan Industries under the 1603-FG series. California residents should note the applicable Prop 65 warning for this product.

SKU: 1603-12-12-12-FG

Supplier Part Number (MPN): 1603-12-12-12-FG

Alternate Part Numbers: 1603-12-12-12, A2255-12-12S

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1603-12-12-12-FG	Product Weight 0.72 lbs

Product Questions & Answers (1)

Question by: Jerry W on Jul 29, 2025, 7:08 AM

All three ports on this tee are the same size and thread type, right? Just want to make sure before I order, got a flow-splitting setup and need everything uniform.

Answer by: Customer Support on Jul 30, 2025, 8:16 AM

all three ports are 3/4-14 Female NPSM swivel, and every one of them meets SAE J514. So if you're splitting flow or combining lines and need identical connections at each leg, this fitting handles that without any adapter workarounds. The symmetrical design is exactly what makes it useful in that kind of setup.
