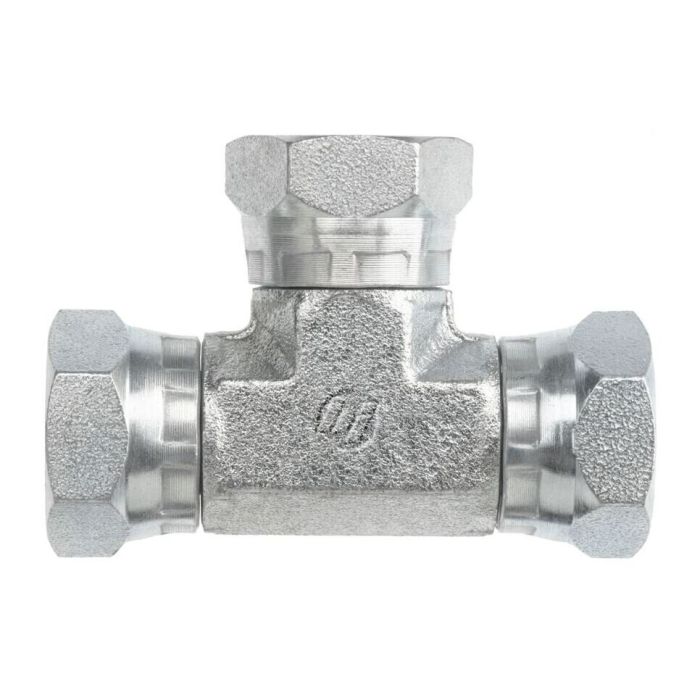

main product photo

16FPS-16FPS-16FPS TEE

Ask A Question

Description & Features

This forged steel tee fitting features three 1-11/2 SAE J514 female NPSM swivel ports. The 16FPS-16FPS-16FPS TEE is part of the Brennan Industries 1603-FG series, designed for reliable performance in demanding hydraulic applications.

With a 1.500-inch hex size and robust construction, this tee fitting ensures secure connections. Centerline lengths measure 1.890 inches and 1.540 inches, with an overall length of 3.780 inches, providing precise dimensions for system integration.

SKU: 1603-16-16-16-FG

Supplier Part Number (MPN): 1603-16-16-16-FG

Alternate Part Numbers: 1603-16-16-16, A2255-16-16S

Specifications

Brand
BRENNAN
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
FNPSM Swivel
Connection Type 1
SAE FNPSM Swivel
Connection Type 2
SAE FNPSM Swivel
Connection Type 3
SAE FNPSM Swivel
Dimension Standards
SAE J514
Dimensions
3.43 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Tee
Hex Size
1-1/2 in
l2 Dimensions
1.89 in
l Dimensions
3.78 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
2500 psi
Series
1603-FG Series
Thread 2 Drill Dimensions
0.78 in
Thread 3 Drill Dimensions
0.78 in
Thread B1 Drill Dimensions
0.78 in
Thread Size
1-11-1/2

Product Questions & Answers (2)

Question by: Rusty O on Oct 28, 2025, 9:13 PM
What size are the hexes on this tee?
Answer by: Customer Support on Oct 30, 2025, 8:31 AM
All three hexes on this tee fitting measure 1.500 inches.
Question by: Hank J on Oct 18, 2025, 4:35 PM
All three ports on this tee are the same size and thread type, right? Just want to make sure before I go ordering it for a manifold setup I got.
Answer by: Customer Support on Oct 20, 2025, 6:06 AM
all three ports are identical. Each one is a 1-11/2 NPSM female swivel, conforming to SAE J514. The drill size across all three ports is 0.780 inches and the hex is 1.500 inches on every end. So if your manifold needs three matching female swivel connections at that size, this tee fits the bill without any adapting.
