45* Elb. Mbspp X Adjust.Mbspp

Ask A Question

Description & Features

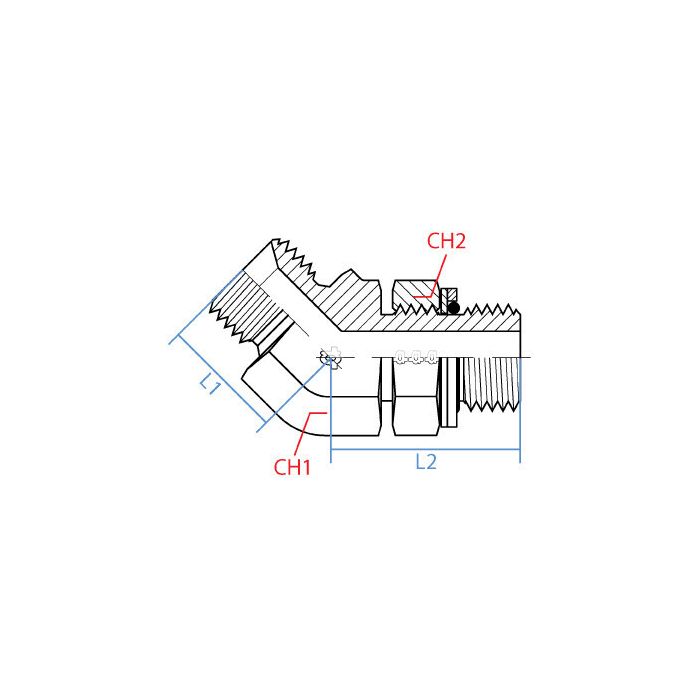

This steel 45° elbow Adaptall fitting features male Bspp connections on both ends. It adapts a 1" Bspp connection to a 1" Bspp connection. This 45* Elb. Mbspp X Adjust.Mbspp has a Ch1 width of 33mm and a Ch2 width of 44mm. The L1 length is 34mm, and the L2 length is 44mm.

SKU: 9051-16-16

Supplier Part Number (MPN): 9051-16-16

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male BSP
Connection Type 1
Male BSPP 60 deg Flare
Connection Type 2
Male BSPP 60 deg Flare
Dimension Standards
BS 5200, ISO 1179, ISO 8434-6
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
41 mm, 33 mm
Material
Steel
Material Construction
Carbon Steel
Series
9051 Series
Thread Size
1-11

Product Questions & Answers (2)

Question by: Janice H on Apr 18, 2025, 5:07 PM
What size connections does this elbow fitting have?
Answer by: Customer Support on Apr 19, 2025, 9:53 PM
This elbow fitting features 1-inch BSPP male connections on both ends.
Question by: Joyce F on Jan 30, 2026, 1:25 PM
Both ends on this thing are 1" BSPP male, so how exactly does it connect to anything if there ain't a female end on either side?
Answer by: Customer Support on Feb 1, 2026, 8:58 AM
Good catch if you're new to adjustable fittings. The "adjustable" side uses a captive nut arrangement, so even though the thread callout is male BSPP on both ends, one side locks down against a mating female port through that adjustable locknut design. It gives you the ability to clock the elbow to whatever position works for your hose or tube routing before you tighten it down. Both sides carry the same G 1-11 thread spec, so you're working with standard 1-inch BSPP threads throughout.
