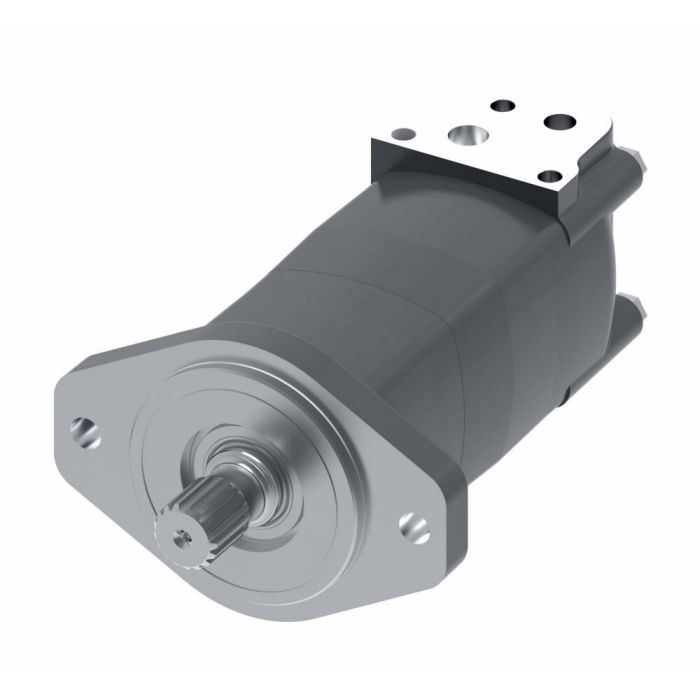

Char-Lynn4K Compact MotorROTATED Flange

Ask A Question

Description & Features

The Char-Lynn4K Compact Motor with rotated flange is a robust hydraulic motor suited for demanding applications such as skid steer loaders, fairway mowers, and harvesters.

This Char-Lynn motor features standard, wheel, or bearingless configurations and a highly efficient Geroler design for energy savings. It can handle a flow rate of 75 liters per minute and delivers a torque rating of 800 newton meters. Constructed from durable cast iron, it offers reliable performance in heavy-duty environments.

SKU: 169-0045

Supplier Part Number (MPN): 169-0045-001

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Design Code
1
Dimensions
11.37 in L x 6.96 in W x 4.78 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
395
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
Without Painted
Port Location
Side, Staggered
Port Type
UNC-2B, Manifold
Seal Material
NBR
Segment Code
B
Series
4000 Compact Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Ronnie C on Sep 26, 2025, 5:37 PM
Will this motor hold up on my skid steer, doing dirt work and moving pallets?
Answer by: Customer Support on Sep 28, 2025, 6:36 AM
It's built for that kind of heavy-duty use. The cast iron construction should give you the durability you need for demanding jobs like those.
