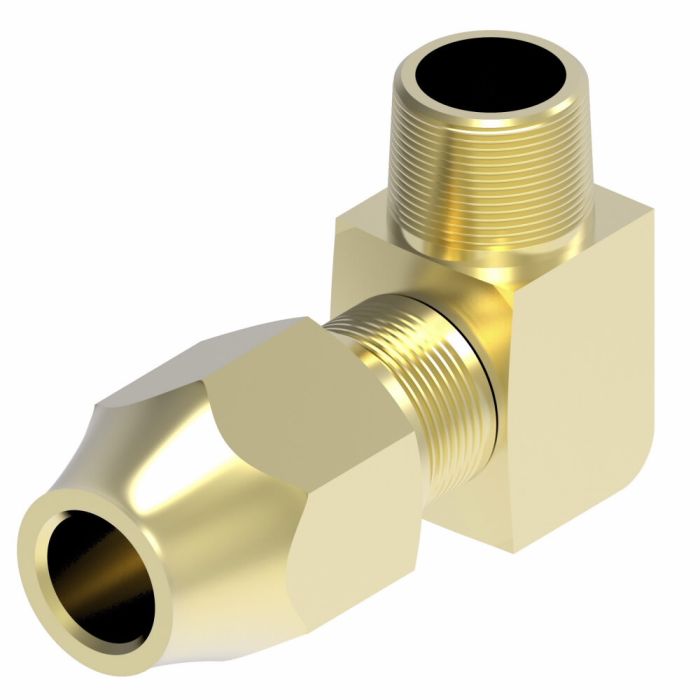

A 90-degree elbow configuration in brass, this NPTF Male to Line/Hose/Tube Female adapter is designed for right-angle connections in hydraulic and industrial fluid systems. Both ends are sized at 1/4 inch, with a hex size of 0.56 inches on the tube end, and a drop dimension of 0.84 inches. The brass construction provides solid resistance to corrosion in standard hydraulic fluid environments.
The Danfoss / Eaton Brass Adapter is part of the Aeroquip line and carries Dura-Kote plating for added corrosion protection beyond standard brass. Rated for operating pressures above SAE standards, it suits demanding industrial applications where connection reliability matters. The long nut design supports a secure compression-style tube connection, and the adapter's 90-degree angle makes it well-suited for tight routing situations where a straight fitting would not accommodate available clearance.
SKU: 169X4X4
Supplier Part Number (MPN): 169X4X4
|
Alternate Part Numbers
MINO-00015X03396
|
Drop Dimension
0.84
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 1
0.25
|
End Size 2
0.25
|
End Type 1
NPTF
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Design flexibility with hundreds of styles to choose from|Higher operating pressures above SAE standards
|
Hex Size 2
0.56
|
ICC
Elbow Adapters
|
Item Type
NPTF Male/Line/Hose/Tube Female 90° Elbow Adapter
|
Language
English
|
NMFC
60
|
Product Material
Brass
|
Product Width
0.58
|
Sub Brand
None
|
Supplier Part Number
169X4X4
|
Product Weight
0.10 lbs
|
