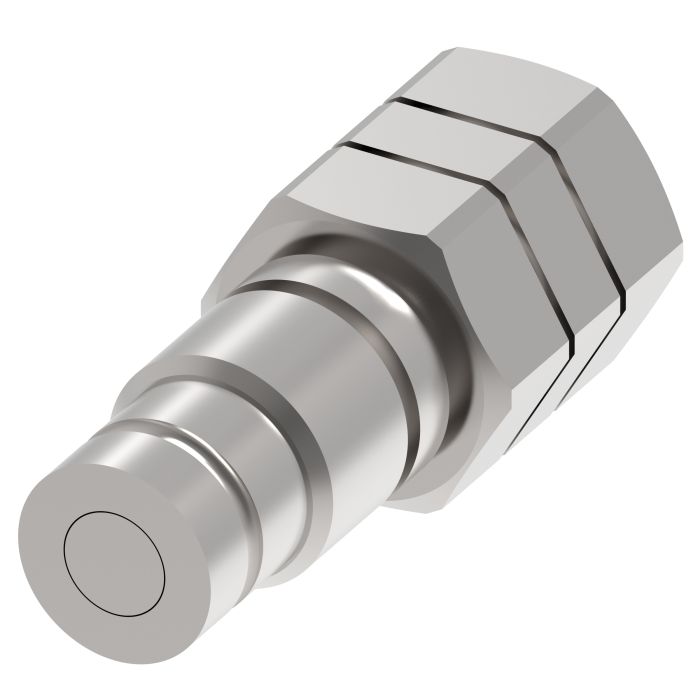

Danfoss / Eaton Male Plug

Ask A Question

Description & Features

Danfoss / Eaton Male Plug is a reliable solution for hydraulic and fluid transfer applications including construction agricultural equipment utility vehicles on-highway vehicles and stationary in-plant hydraulics. It features quick connect and disconnect capabilities eliminating the need for special tools and exceeding ISO 16028 operating pressures. This male plug is compatible with HTMA couplings in the 3/8 size.

Constructed from robust carbon steel with NBR+AU seal material it ensures durability and optimal performance. The flat face internal connection type ensures minimal fluid loss and easy maintenance.

This quick disconnect coupling is RoHS compliant REACH and conforms to the European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3 enhancing its versatility and reliability. With its push-to-connect and SAE end types it streamlines installation and usage. Operating efficiently in temperatures as low as -13F it is designed to support demanding environments.

**Supplier Part Number:** 16FFP106UN

Specifications

Alternate Part Numbers
Alternate Part Number MINO-00015X03406
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
Certifications
ISO 16028
Compliances
RoHS Compliant|REACH|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Gender 1
13554
End Gender 2
13555
End Type 1
Push to Connect
End Type 2
SAE
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
Flow Rate1
21.7 gallons per minute
ICC
Quick Disconnect Couplings
Internal Connection Type
Flat Face
Item Type
Male Half
Language
English
Minimum Working Temperature
-13
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
1.56
Safety locking Mechanism
Sleeve lock
Seal Material
NBR+AU
Sub Brand
Hansen
Supplier Part Number
16FFP106UN
Torque Rating
46.1 lb/ft
Torque Rating
46.1 lb/ft
Valve Type
2 way
Product Weight
0.68 lbs

Related Documents

Product Questions & Answers (2)

Question by: Bonnie B on Oct 16, 2025, 10:31 AM
got a 3/8 HTMA flat-face setup on a skid steer, will this male plug swap in without a bunch of messing around
Answer by: Customer Support on Oct 18, 2025, 6:47 AM
For a 3/8 HTMA flat-face connection, this male half is called out as interchangeable with HTMA couplings in the 3/8 inch size, and it uses a flat face internal connection type to help keep spills down during connect and disconnect.
Question by: Jerry B on Aug 21, 2025, 2:09 PM
Running a 3/8 HTMA setup on my skid steer loader and need a flat face male plug to replace one that got busted up. This the right fit?
Answer by: Customer Support on Aug 23, 2025, 10:25 AM
For 3/8 HTMA couplings with a flat face configuration, yeah, this is the right piece. The 16FFP106UN is built specifically to be interchangeable with HTMA couplings in the 3/8 size, and the flat face internal connection type means it'll mate up clean with minimal fluid loss on disconnect. Carbon steel construction holds up well in the kind of abuse that comes with skid steer work, and the sleeve lock keeps it from backing out under pressure. Push-to-connect end type means no tools needed to get it seated.
