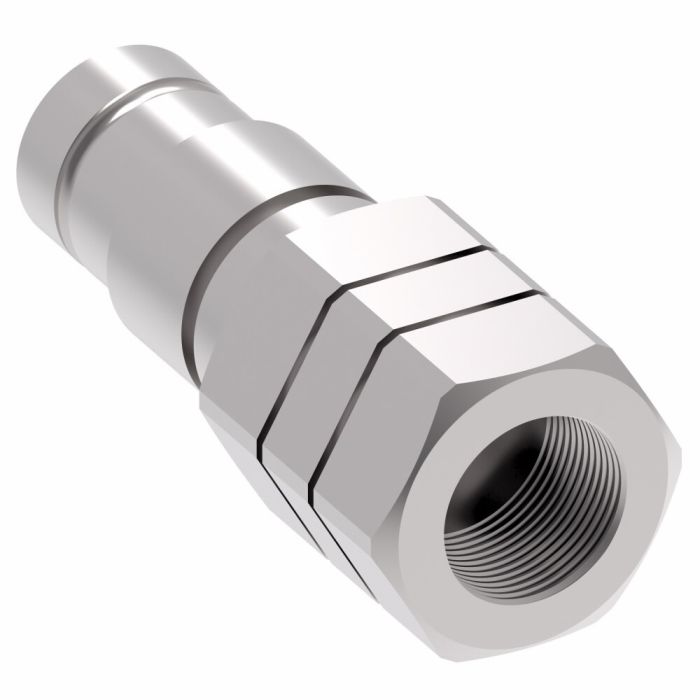

This Danfoss / Eaton CPLG FF Series plug is designed for hydraulic and fluid transfer applications, including construction, agriculture, utility, and on-highway vehicles, as well as stationary in-plant systems. It features a flat face internal connection type and a sleeve lock safety mechanism.
The male half quick disconnect coupling offers quick connect and disconnect without the need for special tools. Constructed from carbon steel with NBR+AU seals, it is REACH and RoHS compliant and conforms to European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3 and ISO 16028 standards. It has a flow rate of 21.7 gallons per minute and a torque rating of 46.1 lb/ft. This coupling is interchangeable with HTMA couplings in the 3/8” size.
SKU: 16FFP50
Supplier Part Number (MPN): 16FFP50
|
Alternate Part Numbers
MINO-00015X03407
|
Application
Hydraulic and Fluid Transfer, Construction equipment, Agricultural equipment, Utility vehicles, On-Highway vehicles, Stationary in-plant hydraulics and fluid transfer, Interchangeable with HTMA couplings in the 3/8” size
|
Certifications
ISO 16028
|
Compliances
REACH|RoHS Compliant|European Pressure Equipment Directive (PED) 97 /23 EC Article 3.3
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13554
|
End Gender 2
13555
|
End Size 2
0.50
|
End Type 1
Push to Connect
|
End Type 2
NPT
|
Features
Quick connect and disconnect|No need for special tools|Exceeds ISO 16028 operating pressures
|
Flow Rate1
21.7 gallons per minute
|
ICC
Quick Disconnect Couplings
|
Internal Connection Type
Flat Face
|
Item Type
Male Half
|
Language
English
|
Minimum Working Temperature
-13
|
Net Pack Quantity Units
EA
|
Product Material
Carbon Steel
|
Product Width
1.56
|
Safety locking Mechanism
Sleeve lock
|
Seal Material
NBR+AU
|
Sub Brand
Hansen and Gromelle
|
Supplier Part Number
16FFP50
|
Torque Rating
46.1 lb/ft
|
Torque Rating
46.1 lb/ft
|
Valve Type
2 way
|
Product Weight
0.69 lbs
|
