Male Jic X Male Metric Thread

Description & Features

This straight steel fitting adapts between JIC and metric threads. It features a 7/8 - 14 UNF male JIC end with a 5/8" size, along with a M18 X 1.5 male metric end with an 18mm size.

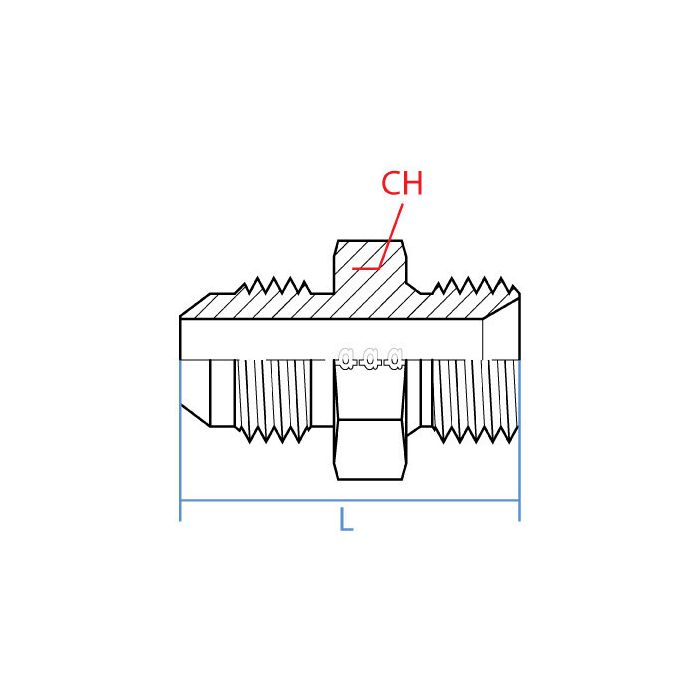

The Adaptall 9067-10-18 Male JIC X Male Metric Thread adapter has a 25.5mm wrench flat and an overall length of 39.8mm.

SKU: 9067-10-18

Supplier Part Number (MPN): 9067-10-18

Specifications

Connection Size 1 7/8 in	Connection Size 2 18 mm	Connection Type Male JIC, Male Metric	Connection Type 1 Male JIC	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-2, ISO 9974, SAE J514	Finish Zinc-Plated	Fitting Type Adapter	Material Steel	Material Construction Carbon Steel	Series 9067 Series	Thread Size 7/8-14, M18x1.5

Product Questions & Answers (3)

Question by: Wade C on Sep 3, 2025, 9:16 AM

Will this fitting hold up okay in a hydraulic system on a farm tractor, or is it more for lighter duty stuff?

Answer by: Customer Support on Sep 5, 2025, 6:32 AM

This Adaptall fitting is made of steel, so it should be durable enough for typical hydraulic applications on a farm tractor.

Question by: Dale S on Oct 3, 2025, 10:40 AM

trying to hook a JIC hose up to a metric port, is this the right adapter for that?

Answer by: Customer Support on Oct 4, 2025, 1:11 PM

For bridging those two thread standards, it’s a straight steel adapter with a male JIC end and a male metric end. Side 1 is 7/8-14 UNF male JIC (5/8 size), and side 2 is M18 x 1.5 male metric (18 mm size).

Question by: Sherry S on Apr 14, 2025, 7:26 PM

Got a hydraulic line coming off a metric port at M18 x 1.5 and need to tie into a JIC system on the other end. This the right adapter for that?

Answer by: Customer Support on Apr 16, 2025, 2:24 PM

That's what this one's built for. One end is M18 x 1.5 male metric, the other is 7/8-14 UNF male JIC at a 5/8" size. Both ends are male, so you'd need female receivers on both sides of your circuit. It's a straight adapter, steel construction, 39.8mm overall length with a 25.5mm wrench flat for torquing it down clean.
