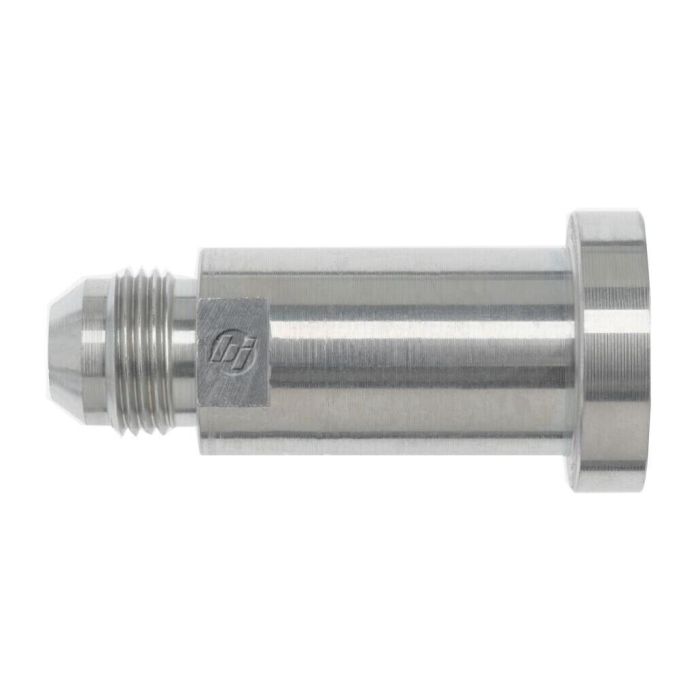

code 61 #10 flange x jic

Description & Features

This straight code 61 flange connects to JIC #10 with a 7/8-14 thread.

It features a 5/8" flange, 0.9375" AF dimension, and a 3.69" L dimension.

The 1700 series code 61 #10 flange x jic is also suitable for 5/8" tube OD applications.

SKU: 1700-10-10

Supplier Part Number (MPN): 1700-10-10

af Dimensions 15/16 in	Connection Size 1 5/8 in	Connection Size 2 5/8 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 61 Flange	Dimension Standards SAE J514, SAE J518	Dimensions 3.69 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.94 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 5000 psi	Series 1700 Series	Thread Size 7/8-14	Tube Outside Diameter 5/8 in

Question by: Norm B on Jan 12, 2026, 12:11 PM

Just want to make sure this'll fit my application, I need a straight code 61 flange connecting to a JIC #10. Is that what this is?

Answer by: Customer Support on Jan 14, 2026, 6:46 AM

That's exactly right. This straight code 61 flange is designed to connect to a JIC #10 fitting with a 7/8-14 thread.
