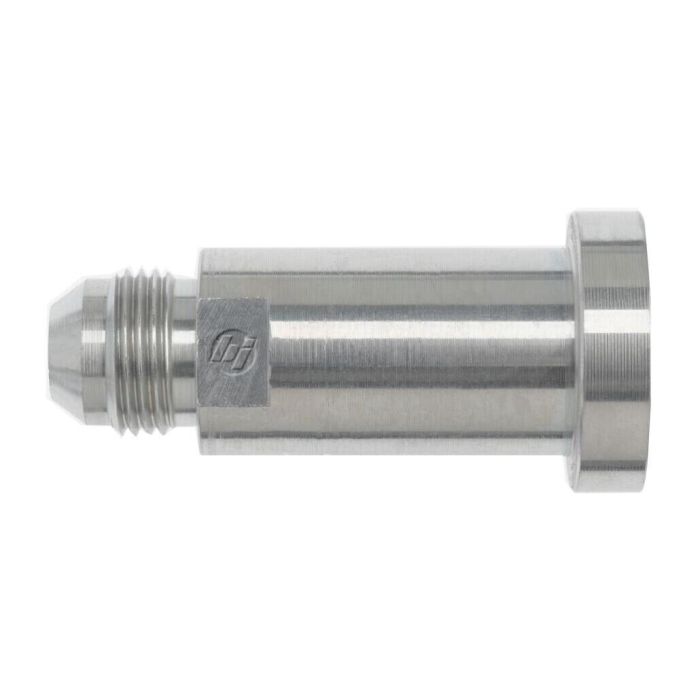

12MJ-20Flange Straight Code 61

Description & Features

This straight code 61 flange fitting is part of the 1700 series from Brennan Industries. Designed for durability and performance, the 12MJ-20Flange Straight Code 61 provides a secure and reliable connection in hydraulic applications. It features a 1 1/16-12 Brennan 1 thread and accommodates a 3/4 inch tube OD.

The Brennan 2 Flange measures 1-1/4 inches, with an AF dimension of 1.688 inches and an L dimension of 2.800 inches. This fitting ensures precise alignment and optimal flow in demanding industrial environments.

SKU: 1700-12-20

Supplier Part Number (MPN): 1700-12-20

Specifications

af Dimensions 1.688 in	Connection Size 1 3/4 in	Connection Size 2 1-1/4 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 61 Flange	Dimension Standards SAE J514, SAE J518	Dimensions 2.8 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-3/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 4000 psi	Series 1700 Series	Thread Size 1-1/16-12	Tube Outside Diameter 3/4 in

Product Questions & Answers (1)

Question by: Rhonda G on Sep 6, 2025, 12:15 PM

So this flange fitting uses a 1 1/16-12 thread, but what size is that second flange?

Answer by: Customer Support on Sep 8, 2025, 6:24 AM

The mating flange on this straight code 61 fitting is 1-1/4 inches.
