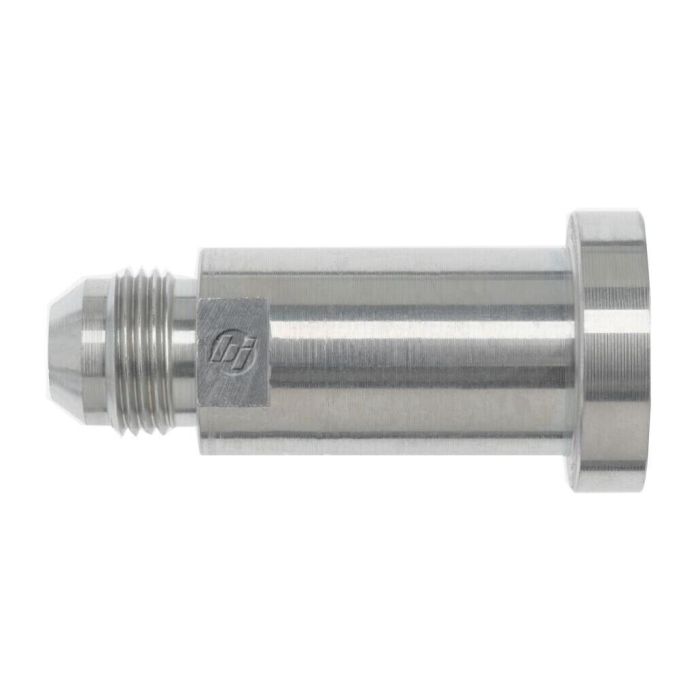

16MJ-16FLANGE STRAIGHT CODE 61

Description & Features

The 16MJ-16Flange Straight Code 61 from Brennan Industries Inc is an essential component for industrial applications. With a length of 2.80 inches it is meticulously crafted to ensure reliability and precision.

This straight flange features a 1 5/16-12 thread and a tube outer diameter of 1 inch. Its across flats measurement is 1.625 inches highlighting thorough engineering standards that contribute to its compatibility and efficiency.

Part of the 1700 Series this flange guarantees secure attachment with its size 1 connection offering the robustness required for demanding industrial environments.

MPN: 1700-16-16

Supplier Part Number: 1700-16-16

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1700-16-16	Product Weight 1.00 lbs

Product Questions & Answers (3)

Question by: Johnny P on Aug 18, 2025, 6:55 AM

What size wrench do I need for this flange?

Answer by: Customer Support on Aug 20, 2025, 6:28 AM

You'll need a 1.625 inch wrench (across flats) to tighten this fitting properly.

Question by: Diane A on Jan 29, 2026, 6:40 PM

got a 1 inch tube on my setup. is this fitting the one with the 1 5/16-12 thread and the Code 61 straight flange?

Answer by: Customer Support on Jan 31, 2026, 8:05 AM

The key callouts on this part are a 1 inch tube OD, a 1 5/16-12 thread, and a straight Code 61 flange with size 1 connection.

Question by: Keith B on Apr 13, 2025, 5:12 PM

What size tubing does this flange fitting actually connect to?

Answer by: Customer Support on Apr 15, 2025, 4:36 PM

Built around a 1-inch tube outer diameter, so you'd be pairing it with 1-inch OD hydraulic tubing on the male JIC side. The flange end is a size 16, which corresponds to that same 1-inch line size. Thread on the JIC end is 1 5/16-12, which is standard for that tube size.
