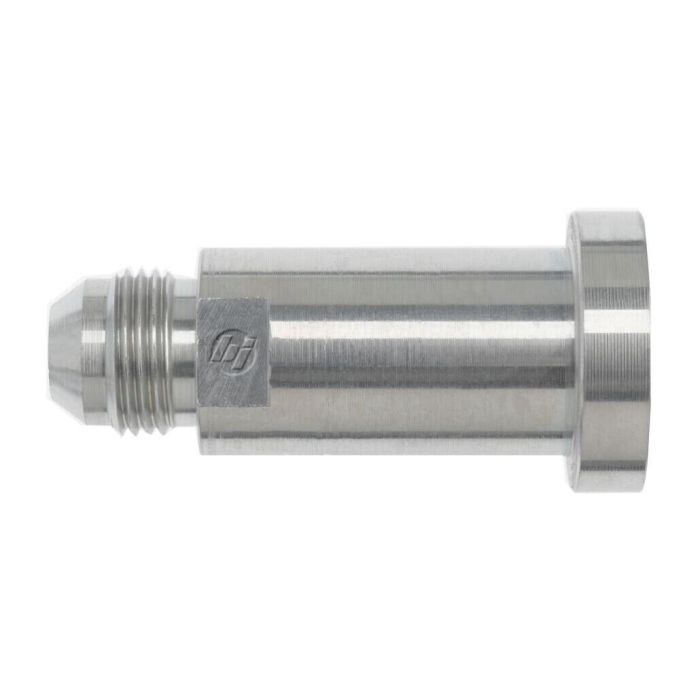

main product photo

16MJ-20FLANGE STRAIGHT CODE 61

Ask A Question

Description & Features

This straight Code 61 flange fitting features a 1-5/16-12 Brennan 1 thread and a 1 1/4 Brennan 2 flange. Designed for hydraulic applications, the 16MJ-20FLANGE STRAIGHT CODE 61 ensures a secure and reliable connection.

With a 1.375-inch AF In dimension and a 2.800-inch L In dimension, this fitting, part of the 1700 series from Brennan, is constructed with a 1-inch tube OD.

SKU: 1700-16-20

Supplier Part Number (MPN): 1700-16-20

Specifications

af Dimensions
1-3/8 in
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Dimensions
2.8 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
4000 psi
Series
1700 Series
Thread Size
1-5/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rick R on Apr 15, 2025, 6:18 AM
Is this flange fitting gonna hold up in a hydraulic system on my farm equipment?
Answer by: Customer Support on Apr 17, 2025, 6:06 AM
Designed for hydraulic applications, the 16MJ-20FLANGE STRAIGHT CODE 61 ensures a secure and reliable connection, which should suit your farm equipment needs.
