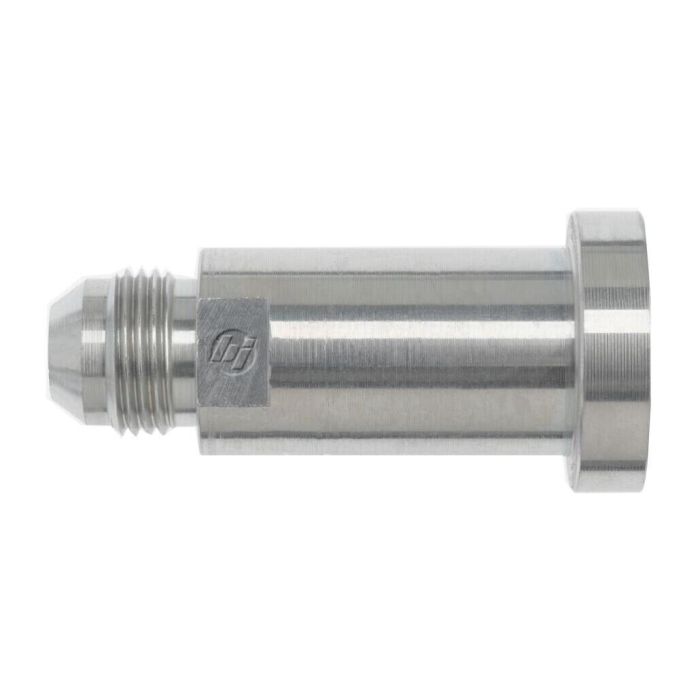

main product photo

20MJ-24FLANGE STRAIGHT CODE 61

Ask A Question

Description & Features

The 20MJ-24FLANGE STRAIGHT CODE 61 is designed for industrial hydraulic applications, providing robust and reliable connections. Featuring a 1 5/8-12 thread size and a 1 1/2-inch flange, this component ensures compatibility with various hydraulic systems. Its construction is tailored to support efficient fluid transfer, making it an essential part for maintaining system integrity.

Part of the Brennan Series 1700, this straight flange fitting is recognized for its durability and precision. The tube outer diameter measures 1 1/4 inches, while the overall length is 3.375 inches, accommodating diverse installation needs. The fitting is engineered to meet industrial standards, ensuring dependable performance in demanding environments.

SKU: 1700-20-24

Supplier Part Number (MPN): 1700-20-24

Specifications

af Dimensions
2-1/8 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Dimensions
2.8 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1.688 in
Material
Steel
Material Construction
AISI 12L14/C1045 Steel
Maximum Operating Pressure
3000 psi
Series
1700 Series
Thread Size
1-5/8-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Duane M on Sep 9, 2025, 1:15 PM
What size is that flange, the 1 1/2 inch one?
Answer by: Customer Support on Sep 10, 2025, 8:47 PM
It's a 1 1/2-inch flange, built to Code 61 standards. This size ensures it fits properly with compatible hydraulic systems.
Question by: Denise P on Jul 1, 2025, 8:58 PM
trying to replace a straight code 61 flange fitting, what thread and flange size is this one?
Answer by: Customer Support on Jul 3, 2025, 6:25 PM
For fit checks, it has a 1 5/8-12 thread and a 1 1/2 inch Code 61 flange size.
