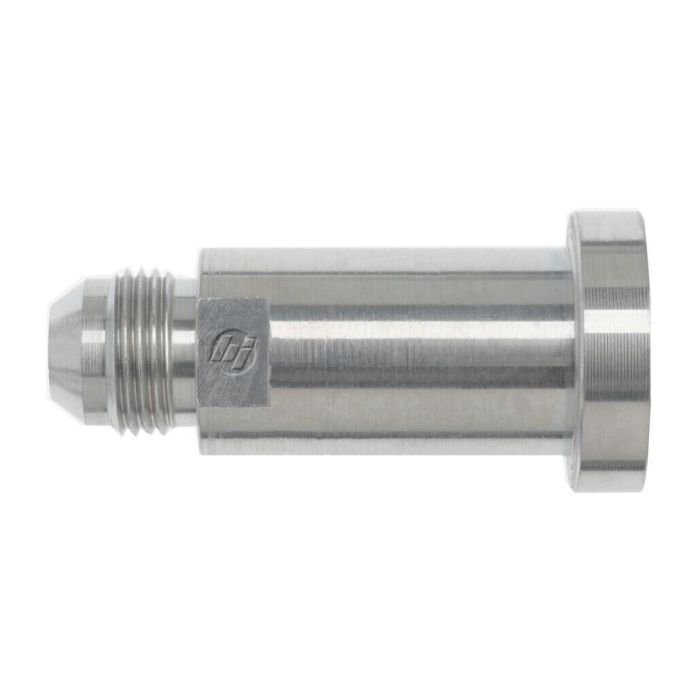

24MJ-24FLANGE STRAIGHT CODE 61

Description & Features

Designed for high-pressure hydraulic connections, the 24MJ-24Flange Straight Code 61 is a straight-configuration flange adapter manufactured by Brennan Industries. It connects a 1 7/8-12 male JIC thread to a 1 1/2 inch Code 61 flange port, making it well suited for medium- to high-pressure hydraulic lines where a reliable, leak-resistant straight connection is required.

Built to Brennan's Series 1700 standard, this fitting features a 1 1/2 inch tube OD, an across-flat dimension of 2 inches, and an overall length of 3.50 inches. The Code 61 flange pattern is widely used in industrial hydraulic systems and is compatible with standard SAE J518 Code 61 flange heads and split-flange clamps.

SKU: 1700-24-24

Supplier Part Number (MPN): 1700-24-24

Specifications

af Dimensions 2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 61 Flange	Dimension Standards SAE J514, SAE J518	Dimensions 3-1/2 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Maximum Operating Pressure 3000 psi	Series 1700 Series	Thread Size 1-7/8-12	Tube Outside Diameter 1-1/2 in

Product Questions & Answers (1)

Question by: Freddie C on Dec 24, 2025, 12:39 PM

Just want to make sure, this fits a standard SAE J518 Code 61 flange, right?

Answer by: Customer Support on Dec 26, 2025, 8:16 AM

Correct, this fitting is compatible with standard SAE J518 Code 61 flange heads and split-flange clamps.
