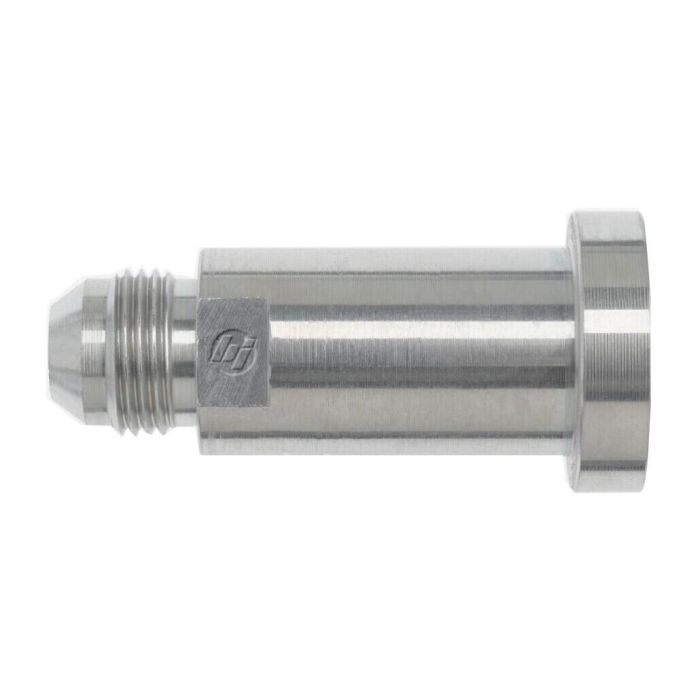

32 MJ X 24 CODE 61 STRAIGHT

Description & Features

Designed for large-bore hydraulic connections, this straight male JIC-to-flange adapter connects a 2-inch tube O.D. with a 2½-12 male thread to a 1½-inch Code 61 flange port. The straight configuration keeps the overall assembly compact, with a length of 4.20 inches and an across-flat dimension of 2.622 inches. Manufactured by Brennan Industries under their 1700 Series, this fitting is built to the Code 61 flange standard, which is commonly specified in high-pressure hydraulic circuits requiring secure, leak-resistant face-seal flange connections.

The 32 MJ x 24 Code 61 Straight is well-suited for mobile and industrial hydraulic systems where large-diameter, high-integrity port connections are required. Brennan's 1700 Series fittings are a recognized choice for demanding hydraulic applications, offering reliable dimensional consistency that facilitates straightforward integration into existing assemblies.

SKU: 1700-32-24

Supplier Part Number (MPN): 1700-32-24

Specifications

af Dimensions 2.622 in	Connection Size 1 2 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 61 Flange	Dimension Standards SAE J514, SAE J518	Dimensions 4.2 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2-5/8 in	Material Steel	Material Construction AISI 12L14/C1045 Steel	Series 1700 Series	Thread Size 2-1/2-12	Tube Outside Diameter 2 in

Product Questions & Answers (1)

Question by: Kurt A on Jun 8, 2025, 4:38 PM

Just want to make sure this fitting will work on my machine. It's got a 1 1/2 inch flange.

Answer by: Customer Support on Jun 9, 2025, 5:39 PM

Correct, this adapter fits a 1 1/2-inch Code 61 flange port. It adapts that to a 2-inch tube O.D. with a 2½-12 male thread.
