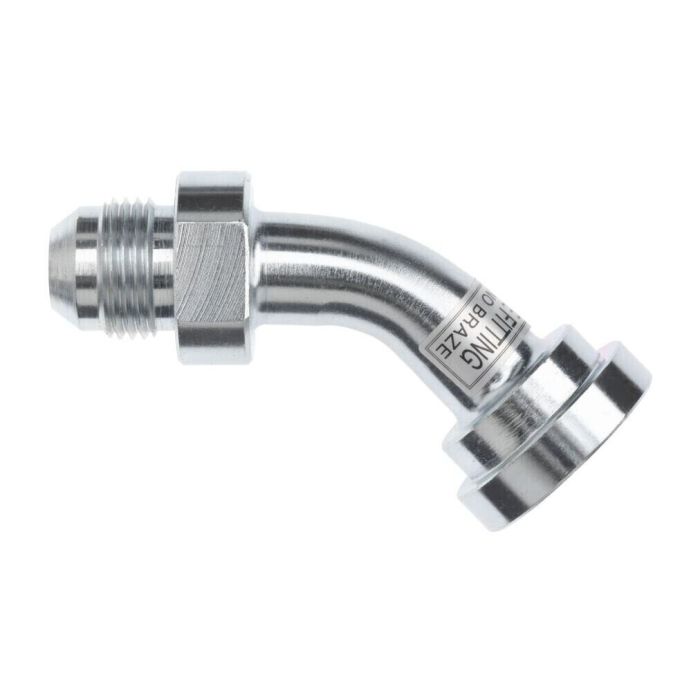

08MJ-12FLANGE 45 ELBOW CODE 61

Description & Features

Designed for 45-degree directional changes in hydraulic line routing, the 08MJ-12FLANGE 45 Elbow Code 61 connects a 3/4-16 UNF male JIC thread to a 3/4 inch Code 61 flange port. This fitting accommodates 1/2 inch tube OD and is manufactured by Brennan Industries to Code 61 flange standards, making it well-suited for medium-pressure hydraulic systems where a compact angular transition is required.

With an across-flat measurement of 7/8 inch and overall dimensions of 2.72 inches in length and 0.94 inches at the flange end, this elbow is built for installations where space constraints influence fitting selection. The Code 61 flange configuration is commonly used in mobile and industrial hydraulic circuits with SAE four-bolt flange connections.

SKU: 1703-08-12

Supplier Part Number (MPN): 1703-08-12

Specifications

af Dimensions 7/8 in	Connection Size 1 1/2 in	Connection Size 2 3/4 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC Flare	Connection Type 2 SAE Code 61 Flange	Dimension Standards SAE J514, SAE J518	Finish Trivalent Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 7/8 in	l1 Dimensions 2.72 in	l2 Dimensions 0.94 in	Material Steel	Material Construction S20C Steel	Maximum Operating Pressure 5000 psi	Series 1703 Series	Thread Size 3/4-16	Tube OD 1/2 in	Tube Outside Diameter 1/2 in

Product Questions & Answers (1)

Question by: Dale G on Mar 28, 2026, 6:16 AM

Reckon this'll hold up okay in a hydraulic setup for farm equipment?

Answer by: Customer Support on Mar 29, 2026, 8:56 PM

Designed to meet Code 61 flange standards, this elbow fitting's well-suited for the medium-pressure systems you'd find on a lot of farm equipment. Just make sure your setup uses SAE four-bolt flange connections.
