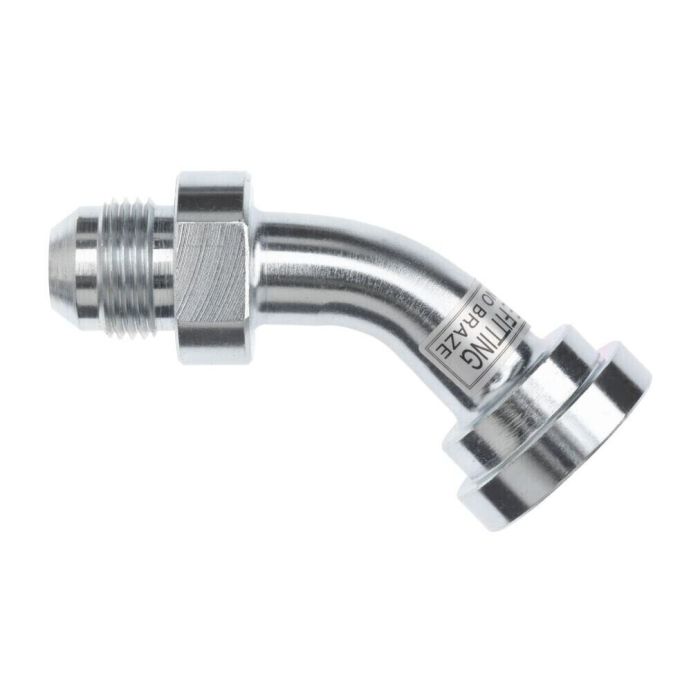

main product photo

12MJ-16FLANGE 45 ELBOW CODE 61

Ask A Question

Description & Features

This 12MJ-16FLANGE 45 ELBOW CODE 61 features a 1 1/16-12 UN Brennan 1 thread and a 1 Brennan 2 flange connection. The fitting has an Af In measurement of 1 1/8 and is part of the 1703 series from Brennan Industries.

With a 45-degree elbow design, this component offers versatility in hydraulic applications. The L1 dimension is 3.15 inches, while the L2 dimension measures 1.02 inches. This elbow fitting is designed for a 3/4 inch tube OD.

SKU: 1703-12-16

Supplier Part Number (MPN): 1703-12-16

Specifications

af Dimensions
1-1/8 in
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-1/8 in
l1 Dimensions
3.15 in
l2 Dimensions
1.02 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
5000 psi
Series
1703 Series
Thread Size
1-1/16-12
Tube Outside Diameter
3/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Cheryl K on Mar 21, 2026, 8:40 AM
Will this fitting work with a standard 3/4 inch OD tube?
Answer by: Customer Support on Mar 22, 2026, 9:41 PM
Yes it will, this elbow fitting is designed for use with a 3/4 inch tube OD.
