16MJ-16 CODE 61 FLANGE 45 ELBOW

Description & Features

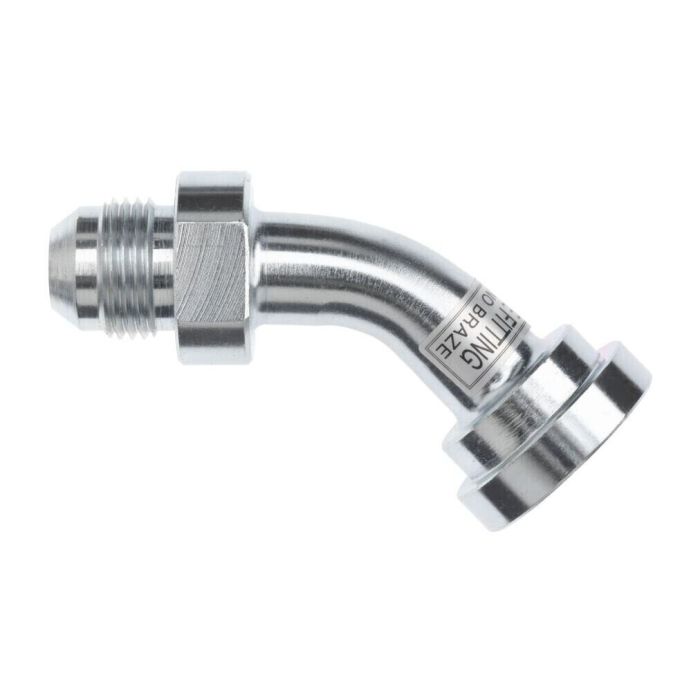

Designed for Code 61 flange hydraulic circuits, the 16MJ-16 Code 61 Flange 45 Elbow from Brennan Industries provides a 45-degree directional change between a male JIC 37° flare fitting and a flat-face flange port. The male thread measures 1 5/16-12 UN, connecting to a 1-inch tube O.D. line, while the flange end accepts a 1-inch Code 61 flange connection.

With an across-flat dimension of 1 3/8 inches and overall lengths of 3.66 inches and 1.18 inches on the respective ends, this fitting is well-suited for compact hydraulic assemblies where routing space is limited. The 45-degree elbow geometry helps reduce stress on hose and tube connections in tight installations common to mobile and industrial hydraulic equipment.

SKU: 1703-16-16

Supplier Part Number (MPN): 1703-16-16

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1703-16-16	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Floyd T on Jun 28, 2025, 6:56 PM

I'm needing a 45 degree elbow to go from a flange to a JIC fitting. Will this one do the job?

Answer by: Customer Support on Jun 30, 2025, 6:50 AM

This elbow is designed to connect a 1-inch Code 61 flange connection to a male JIC 37° flare fitting, making a 45-degree directional change. The JIC side has a 1 5/16-12 UN thread, which connects to a 1-inch tube O.D. line.
