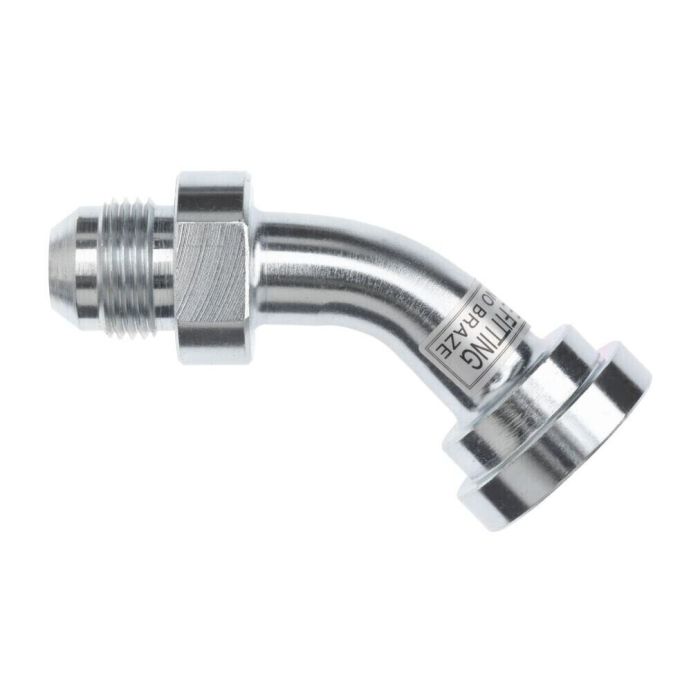

main product photo

16MJ-24FLANGE 45 ELBOW CODE 61

Ask A Question

Description & Features

Designed for high-pressure hydraulic systems requiring a directional change, this 45-degree elbow fitting connects a 1-inch OD tube via a 1 5/16-12 UN male JIC thread to a 1 1/2-inch Code 61 flange port. The 16MJ-24FLANGE 45 Elbow Code 61 from Brennan Industries is built to SAE Code 61 flange standards, making it well-suited for mobile and industrial hydraulic circuit assemblies where reliable, leak-resistant connections are essential.

With an across-flats dimension of 1 3/8 inches, an overall length of 3.74 inches, and a flange-end length of 1.26 inches, the fitting's geometry accommodates routing constraints commonly encountered in compact hydraulic manifold and valve configurations. Part of Brennan's 1703 series, it is manufactured to consistent dimensional standards for reliable fitment and serviceability.

SKU: 1703-16-24

Supplier Part Number (MPN): 1703-16-24

Specifications

Brand
BRENNAN
af Dimensions
1-3/8 in
Connection Size 1
1 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-3/8 in
l1 Dimensions
3.74 in
l2 Dimensions
1.26 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
3000 psi
Series
1703 Series
Thread Size
1-5/16-12
Tube Outside Diameter
1 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
08MJ-12FLANGE 45 ELBOW CODE 61

1703-08-12

1/2 in

3/4 in

3/4-16

1703-12-12

1703-12-12

3/4 in

3/4 in

1-1/16-12

12MJ-16FLANGE 45 ELBOW CODE 61

1703-12-16

3/4 in

1 in

1-1/16-12

16MJ-12Flange Straight Code 61

1703-16-12

1 in

3/4 in

1-5/16-12

16MJ-16 CODE 61 FLANGE 45 ELBOW

1703-16-16

1 in

1 in

1-5/16-12

20MJ-16Flange 45° Elbow Code 61

1703-20-16

1-1/4 in

1 in

1-5/8-12

Brennan -24c61 x 20mjic 45

1703-20-24

1-1/4 in

1-1/2 in

1-5/8-12

MJ-FLANGE 45 DEGREE CODE 61

1703-24-24

1-1/2 in

1-1/2 in

1-7/8-12

BRENNAN ADAPTER

1703-24-32

1-1/2 in

2 in

1-7/8-12

Product Questions & Answers (1)

Question by: Ricky B on Mar 27, 2026, 2:17 PM
Hey, will this here fitting work on my tractor's hydraulic lines? I'm needing a 45-degree bend.
Answer by: Customer Support on Mar 28, 2026, 9:19 PM
Designed for hydraulic systems needing a directional change, this 45-degree elbow fitting should work, as long as your system uses a 1-inch OD tube connected via a 1 5/16-12 UN male JIC thread and a 1 1/2-inch Code 61 flange port.
