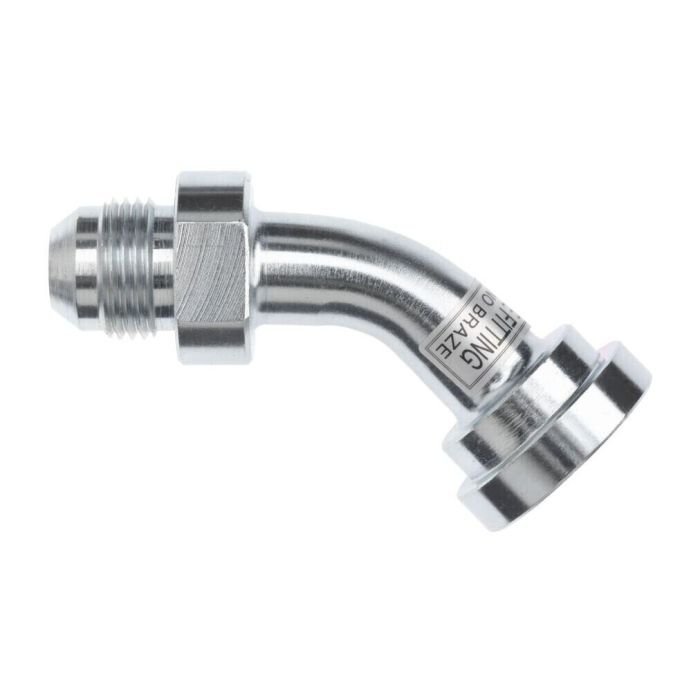

20MJ-16Flange 45° Elbow Code 61

Description & Features

The 20MJ-16Flange 45° Elbow Code 61 is an essential component for hydraulic systems, designed to facilitate a 45-degree directional change in fluid flow. This elbow features a robust male JIC thread of 1 5/8-12 UN and a flange connection, ensuring secure and efficient integration into your hydraulic assembly. With a tube outer diameter of 1 1/4 inches, it is engineered for compatibility with various industrial applications.

Manufactured by Brennan Industries, this elbow is part of the 1703 Series, known for its durable construction and reliable performance. The precise dimensions, including a length of 3.86 inches (L1) and 1.22 inches (L2), contribute to its effective fit and function. The product is crafted to meet demanding industrial standards, making it a dependable choice for hydraulic systems requiring precise flow control and minimal leakage.

SKU: 1703-20-16

Supplier Part Number (MPN): 1703-20-16

Alternate Part Numbers: BR-1703-20-16

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1703-20-16	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Duane R on Sep 6, 2025, 7:48 AM

Will this elbow handle the usual pressures in a hydraulic setup, or is it more for lighter-duty stuff?

Answer by: Customer Support on Sep 8, 2025, 6:54 AM

It's crafted to meet demanding industrial standards, which makes it a dependable choice for hydraulic systems requiring precise flow control and minimal leakage under pressure.
