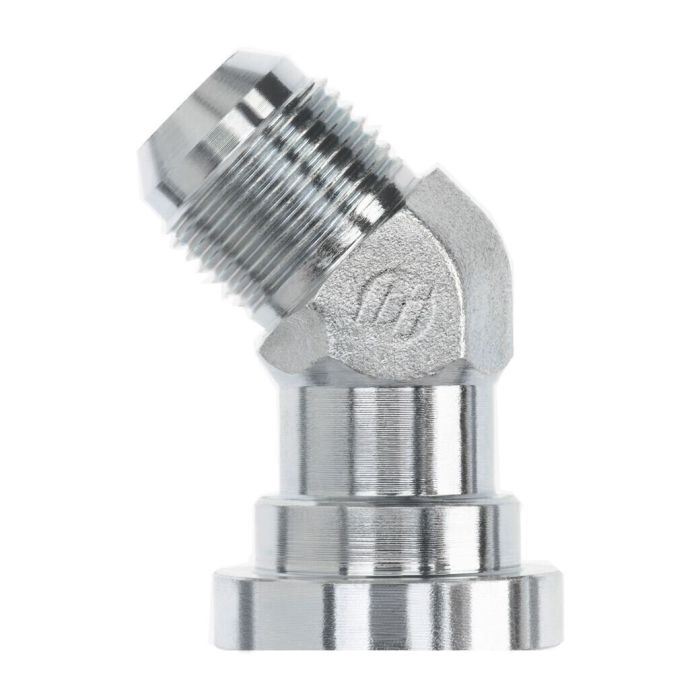

20MJ-20FLANGE 45 ELBOW CODE 61 FORG

Ask A Question

Description & Features

Designed for 45-degree directional changes in high-pressure hydraulic circuits, the 20MJ-20Flange 45 Elbow Code 61 Forged connects a 1-5/8-12 UN male JIC thread to a 1-1/4 inch Code 61 flange port. The forged construction of this Brennan Industries fitting provides the structural integrity expected in demanding fluid power applications.

Part of the Brennan 1703-FG series, this elbow is sized for 1-1/4 inch tube OD service, with an L1 dimension of 1.590 inches and an L2 dimension of 2.040 inches. The Code 61 flange interface is a widely used standard in industrial hydraulic systems, making this fitting a practical choice for equipment assemblies requiring a compact, angled transition between JIC and flange connections.

SKU: 1703-20-20-FG

Supplier Part Number (MPN): 1703-20-20-FG

Specifications

af Dimensions
1-5/8 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1-5/8
l1 Dimensions
1.59 in
l2 Dimensions
2.04 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
1703-FG Series
Thread Size
1-5/8-12
Tube Outside Diameter
1-1/4 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Daryl T on Aug 2, 2025, 9:34 PM
What size wrench do I need for that JIC end?
Answer by: Customer Support on Aug 4, 2025, 6:34 PM
You'll want a 1 5/8 wrench for the 1-5/8-12 UN male JIC thread.
