Brennan -24c61 x 20mjic 45

Ask A Question

Description & Features

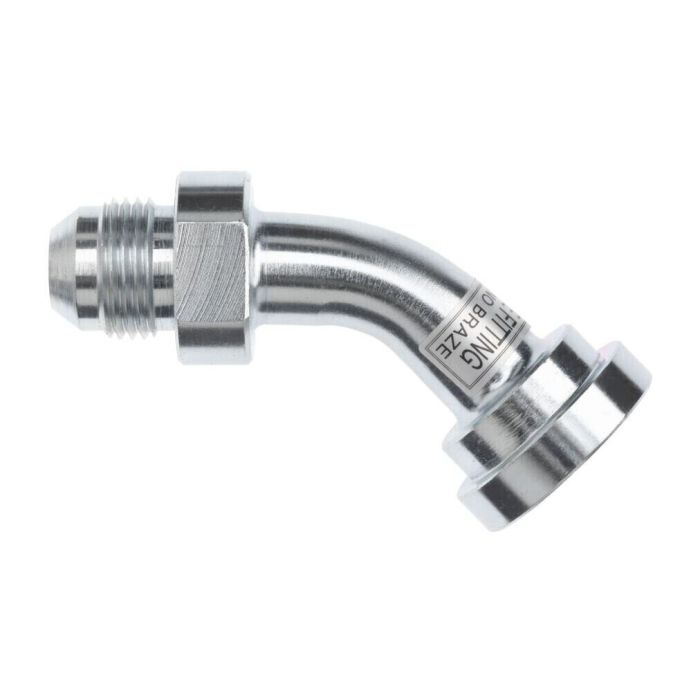

A 45-degree elbow fitting designed for high-pressure hydraulic line routing, this Brennan -24C61 x 20MJIC 45 connects a 1-1/2 inch Code 61 flange on one end to a 1-5/8-12 UN male JIC thread on the other. The 45-degree angle makes it well suited for installations where a straight connection would create clearance issues or introduce excessive stress on adjacent lines.

Manufactured by Brennan Industries, the fitting is built to Series 1703 standards. With an overall length of 4.25 inches and a body length of 1.42 inches on the flange side, it is sized for 1-1/4 inch tube OD applications. The 1-11/16 inch across-flat dimension provides a reliable wrench engagement for proper installation torque.

SKU: 1703-20-24

Supplier Part Number (MPN): 1703-20-24

Specifications

Brand
BRENNAN
af Dimensions
1-11/16 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
1.688 in
l1 Dimensions
4-1/4 in
l2 Dimensions
1.42 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
3000 psi
Series
1703 Series
Thread Size
1-5/8-12
Tube Outside Diameter
1-1/4 in

Similar Products

Model Number Connection Size 1 Connection Size 2 Thread Size Price Action
08MJ-12FLANGE 45 ELBOW CODE 61

1703-08-12

1/2 in

3/4 in

3/4-16

1703-12-12

1703-12-12

3/4 in

3/4 in

1-1/16-12

12MJ-16FLANGE 45 ELBOW CODE 61

1703-12-16

3/4 in

1 in

1-1/16-12

16MJ-12Flange Straight Code 61

1703-16-12

1 in

3/4 in

1-5/16-12

16MJ-16 CODE 61 FLANGE 45 ELBOW

1703-16-16

1 in

1 in

1-5/16-12

16MJ-24FLANGE 45 ELBOW CODE 61

1703-16-24

1 in

1-1/2 in

1-5/16-12

20MJ-16Flange 45° Elbow Code 61

1703-20-16

1-1/4 in

1 in

1-5/8-12

MJ-FLANGE 45 DEGREE CODE 61

1703-24-24

1-1/2 in

1-1/2 in

1-7/8-12

BRENNAN ADAPTER

1703-24-32

1-1/2 in

2 in

1-7/8-12

Product Questions & Answers (1)

Question by: Kurt R on Jul 10, 2025, 12:04 PM
Will this fitting hold up for a hydraulic system running around 3000 PSI?
Answer by: Customer Support on Jul 12, 2025, 7:32 AM
This 45-degree elbow is designed for high-pressure hydraulic applications and is manufactured to Series 1703 standards, suggesting it should handle 3000 PSI, assuming your system is within the Code 61 flange specifications.
