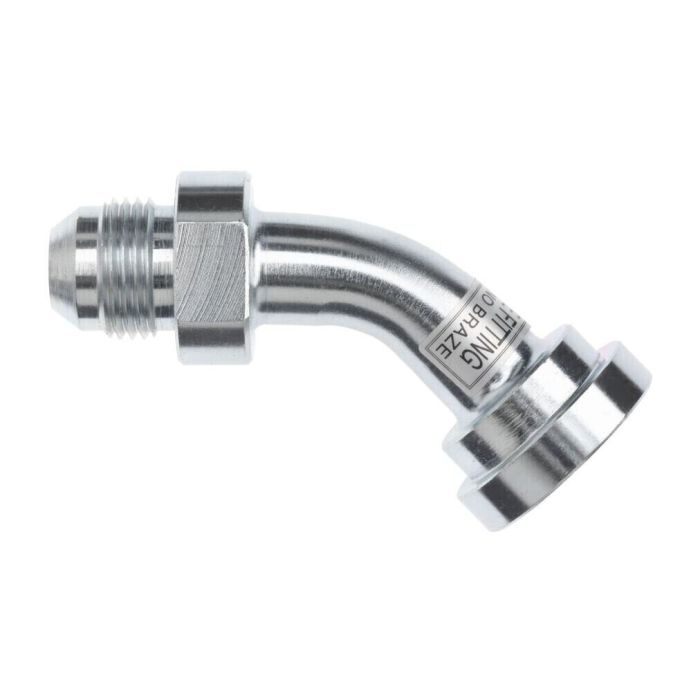

main product photo

MJ-FLANGE 45 DEGREE CODE 61

Ask A Question

Description & Features

The MJ-Flange 45 Degree Code 61 is a robust hydraulic fitting designed for high-performance applications in industrial systems. Featuring a thread size of 1 7/8-12 UN and a flange size of 1 1/2 inches, this fitting ensures secure connections and optimal flow management. Its 45-degree elbow design facilitates efficient directional changes within hydraulic circuits, making it ideal for compact spaces where straight fittings may not suffice.

Manufactured by Brennan Industries, a leader in hydraulic components, this fitting is part of the reliable 1703 series. The tube outer diameter is 1 1/2 inches, offering compatibility with a wide range of hydraulic hoses and tubes. With dimensions of 4.96 inches for L1 and 1.69 inches for L2, it provides a precise fit for various system configurations. This product is essential for maintaining the integrity and efficiency of hydraulic systems requiring angled connections.

SKU: 1703-24-24

Supplier Part Number (MPN): 1703-24-24

Specifications

af Dimensions
2 in
Connection Size 1
1-1/2 in
Connection Size 2
1-1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
2 in
l1 Dimensions
4.96 in
l2 Dimensions
1.69 in
Material
Steel
Material Construction
S20C Steel
Maximum Operating Pressure
3000 psi
Series
1703 Series
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Howard E on Jan 21, 2026, 6:51 AM
Will this fitting hold up in a hydraulic system that runs pretty much non-stop?
Answer by: Customer Support on Jan 22, 2026, 2:56 PM
Designed for high-performance applications in industrial systems, this MJ-Flange fitting should provide secure connections and efficient flow management even under continuous use.
