BRENNAN ADAPTER

Ask A Question

Description & Features

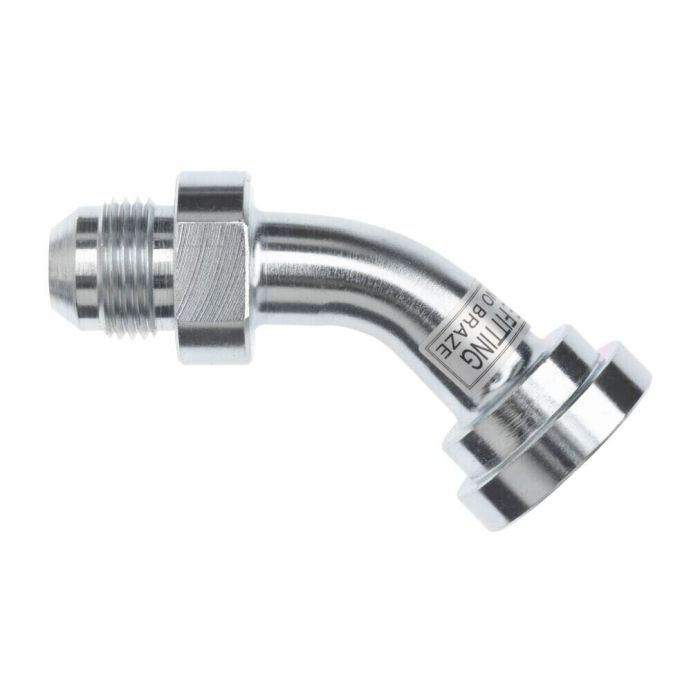

This Brennan adapter features a 24MJ to 32 Flange connection with a 45-degree elbow and Code 61 configuration. It includes a 1 7/8-12 UN thread, a 2-inch flange, and an AF In measurement of 2 inches.

The Brennan adapter has an L1 length of 5.12 inches and an L2 length of 1.81 inches, with a 1 1/2 inch tube OD. It belongs to the 1703 series.

SKU: 1703-24-32

Supplier Part Number (MPN): 1703-24-32

Specifications

af Dimensions
2 in
Connection Size 1
1-1/2 in
Connection Size 2
2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
2 in
l1 Dimensions
5.12 in
l2 Dimensions
1.81 in
Material
Steel
Material Construction
S20C Steel
Series
1703 Series
Thread Size
1-7/8-12
Tube Outside Diameter
1-1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rhonda B on May 18, 2025, 8:40 AM
What size tubing does this adapter work with? Just wanna make sure it'll fit my setup.
Answer by: Customer Support on May 19, 2025, 6:26 PM
This Brennan adapter is designed for use with 1 1/2 inch OD tubing.
