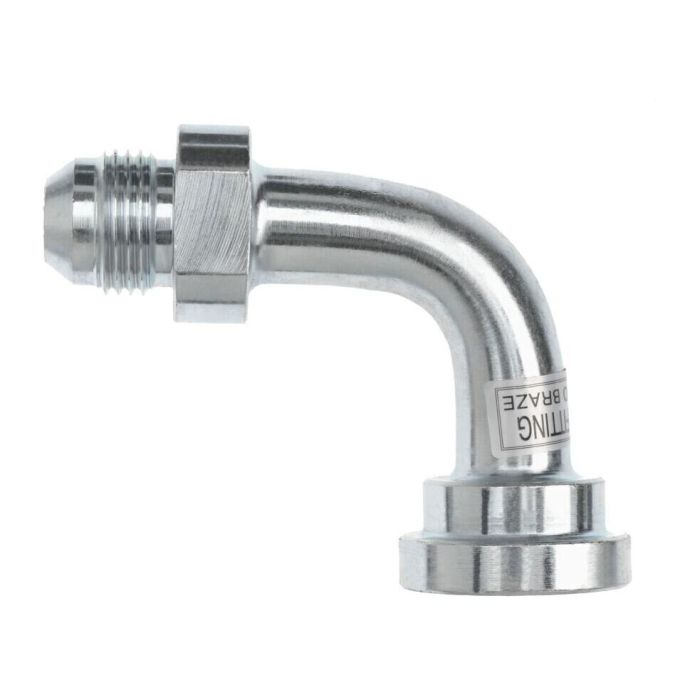

main product photo

BRENNAN ADPTER 08MJ-08FLG 90 ELB CODE 61

Ask A Question

Description & Features

Designed for hydraulic line connections requiring a direction change, this stainless steel 90-degree elbow adapter transitions from a 3/4-16 male JIC 37° flare thread to a 1/2 inch Code 61 flange port. The Brennan Adapter 08MJ-08Flg 90 Elb Code 61 is built to SAE Code 61 flange standards and suits applications where space constraints or routing requirements call for a compact right-angle fitting in corrosion-resistant stainless steel.

The fitting carries a 1/2 inch tube O.D. reference and a 1/2 inch flange size, with an across-flats dimension of 0.875 inches. Overall installed dimensions measure 2.32 inches on the L1 axis and 1.81 inches on the L2 axis, making it well suited for tight installations in hydraulic assemblies where precise envelope dimensions matter.

SKU: 1704-08-08-SS

Supplier Part Number (MPN): 1704-08-08-SS

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Fitting Type
90 deg Elbow
Hex Size
7/8 in
l1 Dimensions
2.32 in
l2 Dimensions
1.81 in
Material
Stainless Steel
Material Construction
316/316L Stainless Steel
Maximum Operating Pressure
5000 psi
Series
1704 Series
Thread Size
3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Ralph S on Nov 11, 2025, 2:28 PM
What size tubing does this fitting work with? Just want to make sure it'll fit my setup.
Answer by: Customer Support on Nov 13, 2025, 12:51 PM
It's designed for hydraulic systems using 1/2 inch outside diameter tubing, which corresponds to the 1/2 inch tube O.D. reference listed.
