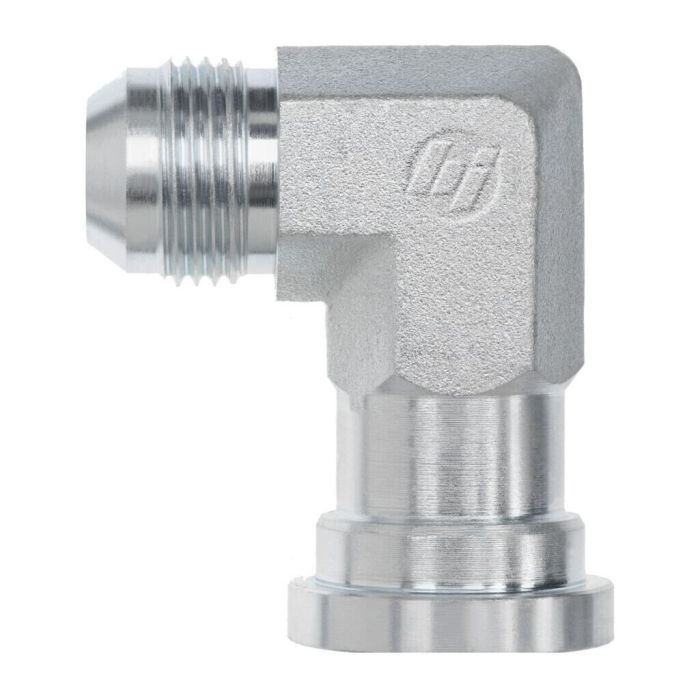

main product photo

08MJ-12FLANGE 90 ELBOW CODE 61 FORGED

Ask A Question

Description & Features

This forged 90-degree elbow features a 3/4 inch flange and a 3/4-16 Brennan 1 thread, suiting it for diverse hydraulic applications. The 08MJ-12FLANGE 90 ELBOW CODE 61 FORGED is constructed for durability and reliable performance.

With a 1/2 inch tube OD, the elbow has an Af In measurement of 1.062 inches, an L1 In of 1.660 inches, and an L2 In of 2.130 inches. Belonging to the 1704-FG Brennan Series, this component ensures secure and efficient connections in demanding settings.

SKU: 1704-08-12-FG

Supplier Part Number (MPN): 1704-08-12-FG

Alternate Part Numbers: 1704-08-12

Specifications

af Dimensions
1.062 in
Connection Size 1
1/2 in
Connection Size 2
3/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.06 in
l1 Dimensions
1.66 in
l2 Dimensions
2.13 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
5000 psi
Series
1704-FG Series
Thread Size
3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Gene T on Sep 29, 2025, 4:27 PM
Will this elbow fitting hold up in a hydraulic system that sees pretty high pressure?
Answer by: Customer Support on Oct 1, 2025, 8:49 AM
Constructed for durability, this forged 90-degree elbow is designed for reliable performance in demanding hydraulic settings.
