12MJ-20FLANGE 90 ELBOW CODE 61

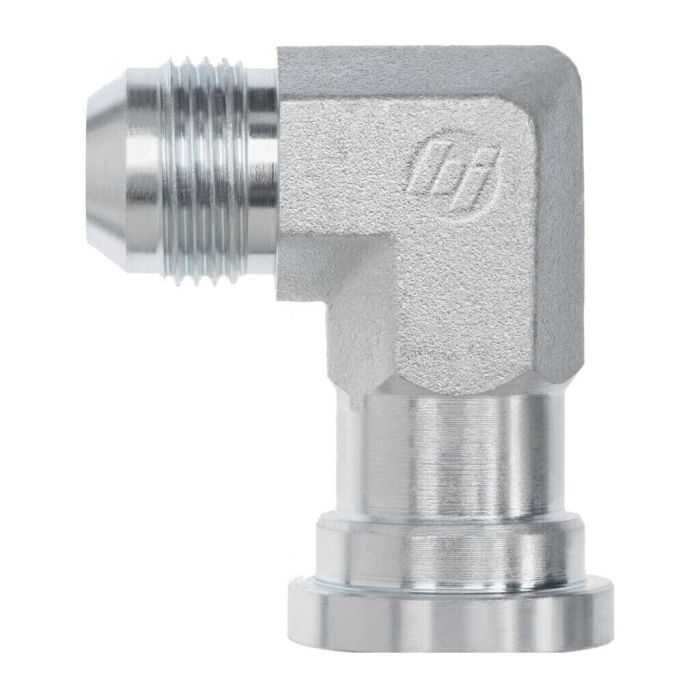

Designed for high-pressure hydraulic systems requiring a directional change, this forged 90-degree elbow connects a 3/4 inch tube OD male JIC fitting to a 1-1/4 inch Code 61 flange port. The male JIC thread measures 1-1/16-12 UN, providing a secure, leak-resistant connection at the swivel end. Forged construction contributes to the strength and dimensional consistency expected in demanding hydraulic circuit applications.

The 12MJ-20FLANGE 90 ELBOW CODE 61 is part of Brennan Industries' 1704-FG series, built to Code 61 flange specifications commonly used in medium- to high-pressure hydraulic assemblies. With an across-flat dimension of 1.625 inches and overall lengths of 2.06 inches and 2.62 inches across the two connection axes, this fitting is well-suited for use in compact or space-constrained hydraulic circuits where a reliable 90-degree transition is required.

SKU: 1704-12-20-FG

Supplier Part Number (MPN): 1704-12-20-FG
