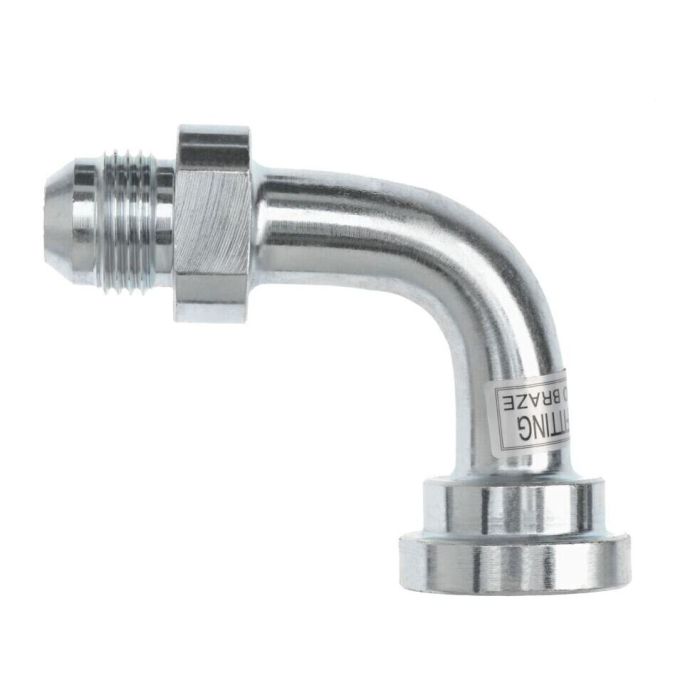

16MJ-16FLANGE 90 ELBOW CODE 61

Description & Features

The 16MJ-16FLANGE 90 Elbow Code 61 offers precise dimensions and robust construction for industrial needs. Engineered by Brennan Industries Inc this elbow ensures reliable performance in various applications.

With a tube outer diameter of 1 inch and a first thread size of 1 5/16-12 UN this elbow provides a secure fit for heavy-duty use. The flange size of 1 inch guarantees compatibility in demanding environments.

Its compact design includes an across-flat dimension of 1 3/8 inches an L1 length of 3.39 inches and an L2 length of 2.60 inches making it practical for space-constrained setups. This product belongs to the Series 1704 recognized for its durability and efficiency.

Supplier Part Number: 1704-16-16

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1704-16-16	Product Weight 0.99 lbs

Product Questions & Answers (3)

Question by: Neal J on Apr 11, 2025, 8:05 AM

Got a 1-inch tube line that needs a 90-degree turn in a tight spot, will the dimensions on this elbow actually work for something like that?

Answer by: Customer Support on Apr 12, 2025, 11:17 AM

For a 1-inch OD tube line, the fit should be right. The thread on the male JIC end is 1 5/16-12 UN, the flange side is sized for a 1-inch Code 61 flange port, and the across-flat measurement is 1 3/8 inches. The L1 runs 3.39 inches and L2 is 2.60 inches, so you can get a decent feel for how it'll sit in the space before you commit to the install. Tight quarters are exactly the kind of situation this form factor is built around.

Question by: Vince M on Jun 13, 2025, 2:50 PM

got a tight spot on my skid, how big is this elbow from end to end?

Answer by: Customer Support on Jun 15, 2025, 12:18 PM

For planning clearance, the listed leg lengths are L1 3.39 inches and L2 2.60 inches, with an across-flats size of 1 3/8 inches.

Question by: Eddie F on Mar 9, 2026, 10:30 AM

Hey, will this elbow work with a standard 1-inch tube? Just wanna make sure before I order.

Answer by: Customer Support on Mar 10, 2026, 12:59 PM

It's designed for use with a 1-inch outer diameter tube, according to the specs. So, yeah, it should fit just fine.
