16MJ-20 FLANGE 90 CODE 61

Ask A Question

Description & Features

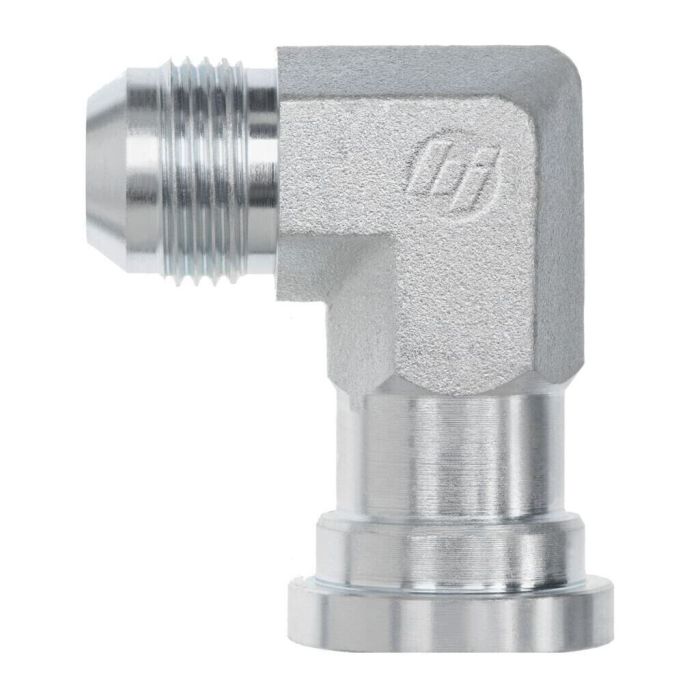

This 16MJ-20 FLANGE 90 CODE 61 features a 1 5/16-12 UN Brennan 1 thread and a 1 1/4 Brennan 2 flange. The forged elbow is designed to meet Code 61 standards.

With a Brennan AF In measurement of 1.625 inches, a Brennan L1 In measurement of 2.060 inches, and a Brennan L2 In measurement of 2.620 inches, this flange offers precise dimensions for secure connections. It has a 1 inch tube OD.

SKU: 1704-16-20-FG

Supplier Part Number (MPN): 1704-16-20-FG

Specifications

af Dimensions
1-5/8 in
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Flanged, Male JIC
Connection Type 1
Male SAE 37 deg JIC
Connection Type 2
SAE Code 61 Flange
Dimension Standards
SAE J514, SAE J518
Finish
Trivalent Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
1.312 in
l1 Dimensions
2.06 in
l2 Dimensions
2.62 in
Material
Steel
Material Construction
AISI C1045 Steel
Maximum Operating Pressure
4000 psi
Series
1704-FG Series
Thread Size
1-5/16-12
Tube Outside Diameter
1 in
