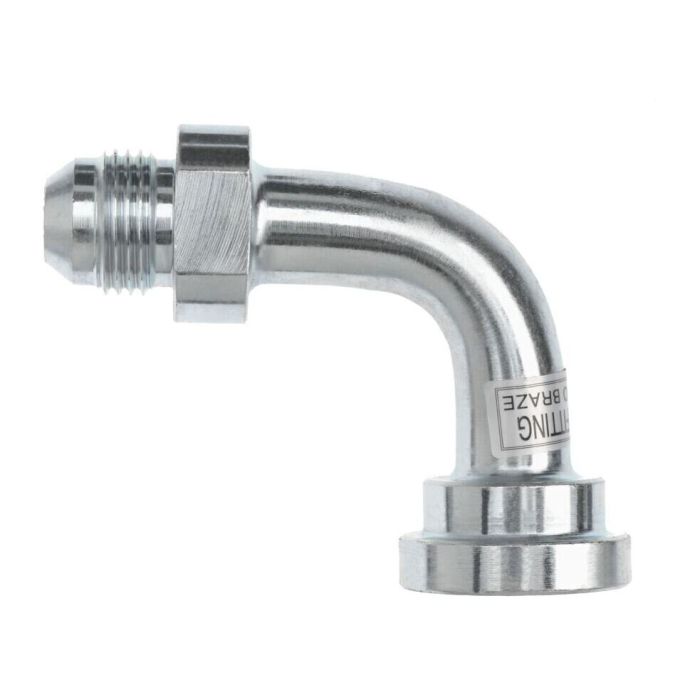

16MJ-20FLANGE 90 ELBOW CODE 61

Description & Features

Engineered for robust connectivity in hydraulic systems, the 90-degree elbow fitting features a 16MJ male thread measuring 1 5/16-12 UN, ensuring a secure and precise connection. Designed with a Brennan 2 flange size of 1 1/4 inches, it offers compatibility with a range of industrial applications requiring Code 61 specifications. The fitting's dimensions, including a length of 3.39 inches (L1) and 2.60 inches (L2), facilitate integration into complex piping configurations. Manufactured by Brennan Industries, this elbow fitting is part of the 1704 series, known for its reliability and performance in demanding environments.

SKU: 1704-16-20

Supplier Part Number (MPN): 1704-16-20

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1704-16-20	Product Weight 0.99 lbs

Product Questions & Answers (3)

Question by: Gene A on Jan 15, 2026, 9:05 AM

trying to swap out an elbow on a Code 61 flange setup, is this one the 1 1/4 flange size?

Answer by: Customer Support on Jan 17, 2026, 6:15 AM

It matches a Brennan 2 flange size of 1 1/4 inch and it is called out as a Code 61 90 degree elbow, so it lines up with a Code 61 flange connection in that size.

Question by: Ray H on Feb 24, 2026, 9:26 AM

got a 1 1/4 inch flange port on a manifold block and need a 90 to swing the line out, does this fitting match up to that size?

Answer by: Customer Support on Feb 26, 2026, 6:50 AM

For a 1 1/4 inch Code 61 flange port, this is the right fit. The flange end on this elbow is sized at 1 1/4 inches and built to Code 61 spec, so it'll bolt right up to a standard Code 61 port of that size. The male thread on the other end runs 1 5/16-12 UN, which is a 16MJ thread, so make sure whatever hose or tube assembly you're connecting to on that side is spec'd to match.

Question by: Hugh R on Dec 4, 2025, 5:31 PM

So this here's got a 1 5/16-12 UN thread, right? Just wanna make sure before I order.

Answer by: Customer Support on Dec 6, 2025, 4:35 PM

Yes, that's correct. This elbow fitting features a 1 5/16-12 UN male thread. That'll give you a secure connection.
