24-16 19t3 (CODE 61)

Description & Features

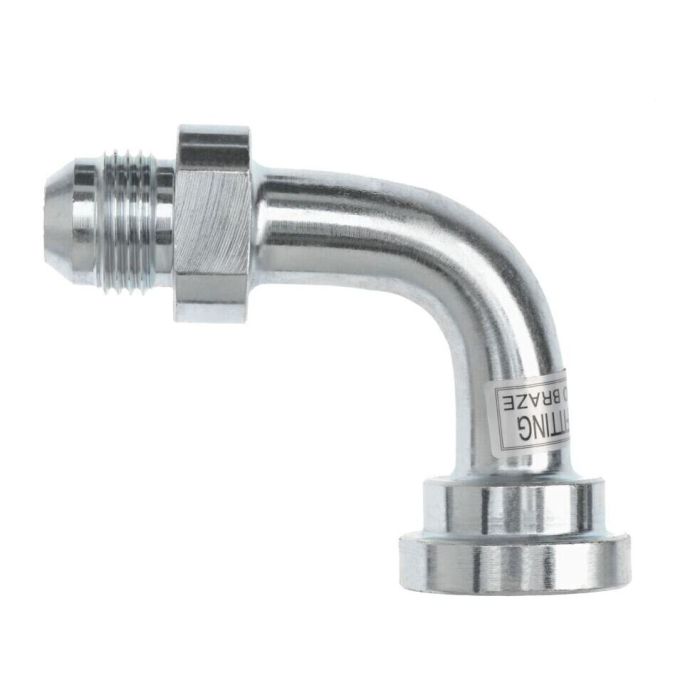

Designed for robust industrial applications, this 90-degree elbow fitting is crafted to deliver reliable performance in high-pressure environments. Featuring a 16MJ-24 flange connection, it seamlessly integrates with 1 5/16-12 UN threads, offering versatility in hydraulic systems. The elbow belongs to the Brennan Series 1704 and is designed to accommodate a tube outer diameter of 1 inch, ensuring a secure and efficient fit.

With dimensions of 3.39 inches for L1 and 2.66 inches for L2, this fitting provides the necessary reach and alignment for complex configurations. Manufactured by Brennan Industries, the 24-16 19t3 (CODE 61) elbow is engineered to meet the exacting standards of industrial applications, ensuring durability and precision in every use.

SKU: 1704-16-24

Supplier Part Number (MPN): 1704-16-24

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 1704-16-24	Product Weight 0.99 lbs

Product Questions & Answers (1)

Question by: Freddie B on Feb 27, 2026, 8:18 AM

I need a 90-degree elbow for a hydraulic setup with 1-inch tubes. Will this one do the trick?

Answer by: Customer Support on Feb 28, 2026, 5:45 PM

This 90-degree elbow fitting is designed for a 1-inch tube outer diameter, so it should provide a secure and efficient fit for your hydraulic setup.
