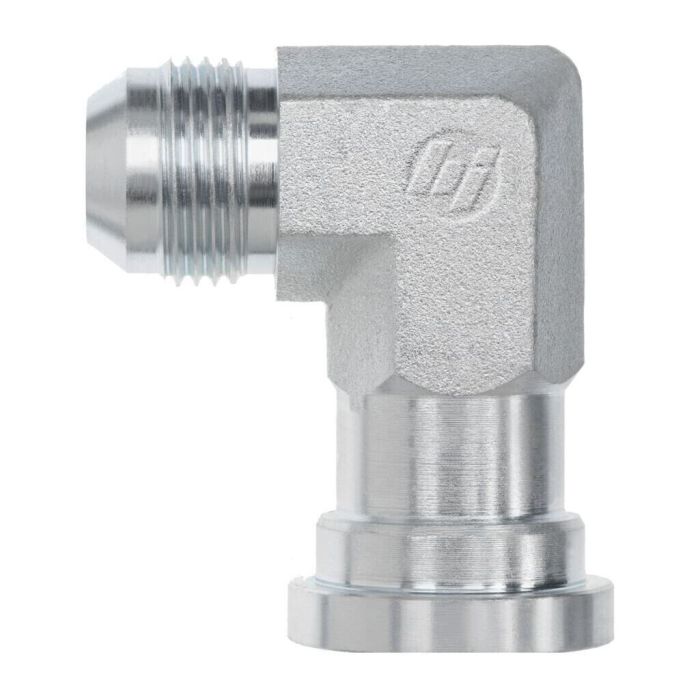

MJ-FLANGE 90

A 90-degree male JIC-to-flange elbow designed for high-pressure hydraulic installations where a right-angle transition between a tube line and a Code 61 flange port is required. The MJ-Flange 90 is manufactured by Brennan Industries as part of the 1704-FG series, constructed from forged steel for strength and dimensional consistency under pressure.

The male JIC end features a 1-5/8-12 thread with a 1-1/4 in. tube O.D., while the flange end accepts a 1-1/4 in. Code 61 flange connection. With an L1 dimension of 2.060 in. and an L2 dimension of 2.620 in., this fitting is suited for compact routing in tight hydraulic circuit layouts. The forged construction supports reliable sealing across both connection ends in demanding industrial fluid power applications.

SKU: 1704-20-20-FG

Supplier Part Number (MPN): 1704-20-20-FG
