Description & Features

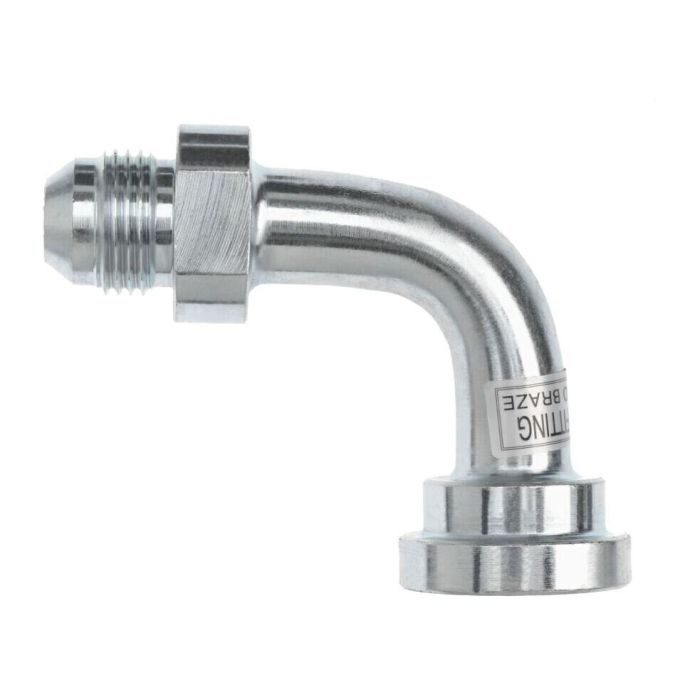

The 20MJ-24Flange 90-degree Elbow Code 61 is a high-performance hydraulic fitting designed for robust industrial applications. Featuring a 1 5/8-12 UN thread and a 1 1/2 flange, this elbow ensures a secure connection in hydraulic systems. Its 90-degree configuration allows for efficient directional changes in fluid flow, optimizing system layouts in confined spaces.

Constructed by Brennan Industries, the 24-20 19T3 is part of the reliable 1704 series and is engineered for compatibility with 1 1/4-inch tube outer diameter systems. With dimensions of 3.98 inches for L1 and 3.11 inches for L2, it provides precise alignment and ease of installation. This fitting is ideal for use in demanding environments where durability and reliability are paramount.

SKU: 1704-20-24

Supplier Part Number (MPN): 1704-20-24

Alternate Part Numbers: 1046-2521

Specifications

af Dimensions 1-11/16 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Flanged, Male JIC	Connection Type 1 Male SAE 37 deg JIC	Connection Type 2 SAE Code 61 Flange	Dimension Standards SAE J514, SAE J518	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 1.688 in	l1 Dimensions 3.98 in	l2 Dimensions 3.11 in	Material Steel	Material Construction S20C Steel	Maximum Operating Pressure 3000 psi	Series 1704 Series	Thread Size 1-5/8-12	Tube Outside Diameter 1-1/4 in

Product Questions & Answers (1)

Question by: Neil W on Dec 1, 2025, 2:33 PM

Hey, is this elbow gonna fit a 1 1/4 inch tube? Just wanna make sure before I order.

Answer by: Customer Support on Dec 3, 2025, 11:45 AM

This 90-degree elbow is indeed designed for a 1 1/4-inch outer diameter tube, so it should fit just right in your hydraulic system.
